- FADINI NYOTA 115 EVO | Electromechanical Geared Motor Operator for Sliding Gates | Powerful and Stylish

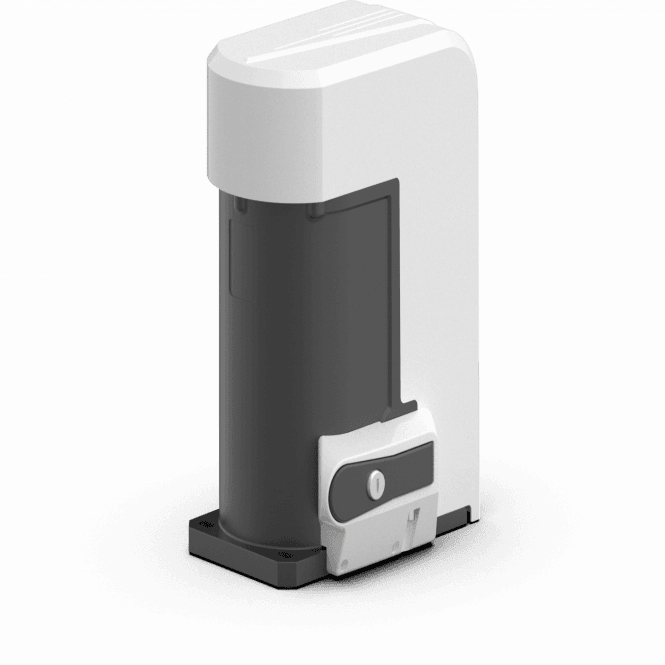

FADINI NYOTA 115 EVO | Electromechanical Geared Motor Operator for Sliding Gates | Powerful and Stylish
- From $796.56 $796.56 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview
The FADINI NYOTA 115 EVO electromechanical geared motor operator is a powerful and stylish solution for automating sliding gates. Available in 230 Vac and 400 Vac, it features a coupling of worm and bronze crown gear in an oil bath, supported by ball bearings for smooth operation.
Key Features
- 230 Vac and 400 Vac geared motor operator
- Aluminium gearbox and cover for long-term durability
- Anti-crush system with encoder and amperometric detection
- Electronic brake, acceleration, and deceleration on each cycle
- Versatile range of models with various electric motors
- CE marked and tested for compliance
- Master/slave function for bi-parting sliding gates
Product Description
The FADINI NYOTA 115 EVO offers powerful and reliable performance for sliding gates, combining advanced technology with durable construction. The aluminium gear box and cover ensure longevity, while the anti-crush system provides enhanced safety by reversing gate travel upon detecting obstacles.
This motor operator is available in several models, each tailored to different power requirements and gate weights. The electronic control unit can be incorporated inside the NYOTA 115 EVO or housed in a separate polycarbonate box, providing flexibility in installation. Programming gate travel is simplified with a button, and the system includes features such as electronic brake, acceleration, and deceleration for smooth operation.
Specifications
| Feature | 0.5 HP - 1PH | 0.5 HP - 3PH | 1 HP - 1PH | 1 HP - 3PH |
|---|---|---|---|---|
| Power supply (Vac – Hz) | 230 - 50 | 230/400 - 50 | 230 - 50 | 230/400 - 50 |
| Max. absorbed power (W) | 600 | 575 | 1,130 | 1,030 |
| Max. absorbed current (A) | 3.2 | 2.1/1.2 | 5.7 | 3.7/2.2 |
| Power yield (W) | 0.37 | 0.37 | 0.73 | 0.73 |
| Motor revolutions (rpm) | 1,380 | 1,380 | 1,380 | 1,380 |
| Capacitor (μF) | 30 | - | 30/40 | - |
| Rated torque (Nm) | 40 | 40 | 80 | 80 |
| Travel speed (m/min) | 10 | 10 | 10 | 10 |
| Gear ratio | 1/32 | 1/32 | 1/32 | 1/32 |
| Working temperature (°C) | -25 ÷ +80 | -25 ÷ +80 | -25 ÷ +80 | -25 ÷ +80 |
| Motor thermal protection (°C) | 160 | 160 | 160 | 160 |
| Limit switch | magnetic | magnetic | magnetic | magnetic |
| Grade of protection IP | 55 | 55 | 55 | 55 |
| Oil type | F/706L | F/706L | F/706L | F/706L |
| Weight (kg) | 18.5 | 18 | 20 | 19.5 |
| Frequency of use | very intensive | very intensive | very intensive | very intensive |
Product Code List / Guide
- F/1113L - 230/400 Vac 3PH, 0.37 kW / 0.5 HP, 1,250 kg max weight
- F/1114L - 230/400 Vac 3PH, 0.73 kW / 1 HP, 1,850 kg max weight
- F/1116L - 230 Vac 1PH, 0.37 kW / 0.5 HP, 1,200 kg max weight
- F/1117L - 230 Vac 1PH, 0.73 kW / 1 HP, 1,800 kg max weight
- F/1121L - 230 Vac 1PH, 0.37 kW / 0.5 HP, ELPRO 12 EVO, 1,200 kg max weight
- F/1122L - 230 Vac 1PH, 0.73 kW / 1 HP, ELPRO 12 EVO, 1,800 kg max weight
- F/1269L - 230 Vac 1PH reversible, 0.37 kW / 0.5 HP, 1,200 kg max weight
- F/1271L - 230 Vac 1PH reversible, 0.37 kW / 0.5 HP, ELPRO 12 PLUS FN, 1,200 kg max weight
Notes:
- Each code includes an electromechanical geared motor operator with pinion for the rack, anchoring base plate with screws for ground fixing, two keys for the release handle, magnetic limit switch, and a pair of limit switch brackets. The electronic control unit and encoder are included only for the code numbers as indicated in the chart.
- The gate structure, size, and possible strong winds may affect the value of indicated max. weight. Always make sure the gate is adequate to be automatically operated and remove any possible friction points.
- Reversible versions are possible to open or close by hand in case of power failure; no need for the release handle or release spanner to be operated.
