GIBIDI GROUND KIT | Underground Electromechanical Twin Kit for Leaf up to 3.5m
- From £1,820.40 £1,517.00 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview

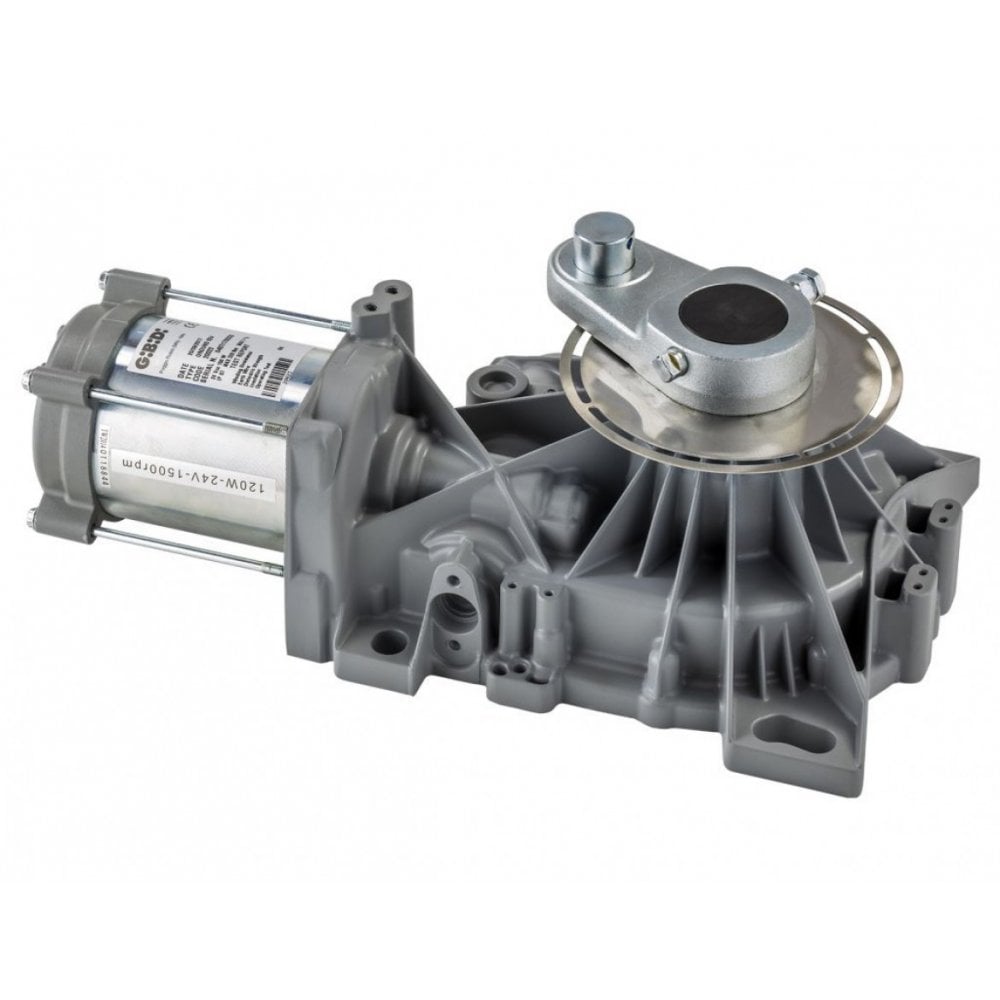

GROUND KIT - Underground Electromechanical Twin Kit for Leaf up to 3.5 meters is available in both 230Vac and 24Vdc versions. Designed for swinging gates of medium dimensions and weight, it is suitable for both residential and intensive use.
Key Features
- Easy to install with a self-supporting foundation box
- Silent and fast operation, opening in just 12 seconds
- Adjustable opening speed in the 24Vdc version
- Robust construction with steel and bronze-aluminium
- Adjustable anti-crushing sensitivity for enhanced safety
- Compliant with EN12453 safety standards
- Painted reduction gear for protection against atmospheric and environmental agents
Product Description
EASY TO INSTALL
Thanks to the special self-supporting foundation box. Ambidextrous motor and pre-assembled accessories.
SILENT AND FAST
Only 12 seconds to open the gate! Extremely silent, due to the materials used and tidy finishing of the gears. In the 24Vdc version, it is possible to adjust the opening speed.
TECHNOLOGICAL AND SAFE
GROUND is built entirely in steel and bronze-aluminium, robust and reliable over time. In the 24Vdc version, it is possible to adjust the anti-crushing sensitivity to enhance safety, in compliance with EN12453 standards. The unlocking key has a European profile.
A COMPLETE AND RELIABLE RANGE
GROUND meets all aesthetic needs of your gate and remains reliable over time, thanks to the completely painted reduction gear, protecting it from atmospheric and environmental agents.
Specifications
| Feature | GROUND610 | GROUND624 |
|---|---|---|
| Type of use | Residential | Heavy Duty |
| Frequency of use | 30% | Heavy Duty |
| Motor power supply | 230 Vac - 50/60 Hz | 24 Vdc |
| Absorbed power | 400W | 150W |
| Protection degree | IP67 | IP67 |
| Shaft rotation speed | 7°/s | 7°/s |
| Max torque | 530 Nm | 320 Nm |
| Adjustable force | Electronic | Electronic |
| Adjustable speed | Electronic ** | Electronic ** |
| Max leaf width | 3.5 m * | 3.5 m * |
| Max door opening angle | 110° | 110° |
| Operating temperature | -20°C to +60°C | -20°C to +60°C |
| Encoder/limit switch | LS are optional limit switches O/C | LS are optional limit switches O/C |
| Type of lubrication | Grease GBD WH-01 | Grease GBD WH-01 |
| Weight of the unit | 11.1 Kg | 11.1 Kg |
NOTE: * In case of blind leaf or wind presence or leaf over 2.5 m, the use of the electric lock is necessary
What's in the Box
| Component | KIT GROUND610 | KIT GROUND624 |
|---|---|---|
| GROUND Operators | 2 | 2 |
| AJ49300 Self-supporting painted foundation box | 2 | 2 |
| AS06320 for 1 or 2 motors (F4) | 1 | Not Applicable |
| AS06399 for 1 or 2 motors (BA 24) | Not Applicable | 1 |
| AU02910 2 channels plug-in receiver board for control units | 1 | 1 |
| Complete flashing lamp device | 1 | 1 |
| AU03100 MAKO remote control 433Mhz | 2 | 2 |
| AU01940 wall mounted key selector model DCS100 | 1 | 1 |
| AU02250 pair of DCF180 wall mounted photocells | 1 | 1 |
| AJ75800 gate warning plate | 1 | 1 |
Note: The kit is supplied in multiple packages.
