FADINI COMBI 740 | Underground Kit | Double Locking, 110° Rotation

FADINI COMBI 740 | Underground Kit | Double Locking, 110° Rotation

Underground Automation Kits
Code: F/7421L
  • £1,787.76 Ex Vat
Item in Stock   |   Usually dispatched within 24 hours
Loading...
Ask A Question
Tell A Friend
Price Match

Product Overview

The Fadini COMBI 740 underground kit is a complete solution for automating a pair of swing gates with a maximum width of 3 meters each leaf. This kit features a compact, strong, and fully concealed assembly that includes an oil hydraulic motor pump and jack in a single enclosure, ensuring maintenance-free operation.

Key Features

  • Compact and Concealed: The all-in-one design includes an oil hydraulic motor pump and jack, ensuring a neat and unobtrusive installation.
  • Double Locking and Braking: Provides enhanced security and stability with braking in both directions.
  • Reliable and Safe: Built with top-quality internal components for safe and quiet movements, and features an adjustable thrust power by pressure valves.
  • Tested and Certified: C marked in compliance with ITT PDC No.2393-2008 type testing.
  • Emergency Release: Includes a left-handed and right-handed emergency mechanical release bracket made of pressed steel with an ergonomic spanner.

Product Description

Fadini COMBI 740 Underground Kit - Double Locking with 110 Degree Rotation

The Fadini COMBI 740 underground kit is an advanced solution designed to automate swing gates efficiently and securely. This kit is ideal for gates up to 3 meters wide per leaf and features a compact and fully concealed installation that ensures a clean and unobtrusive look. The integrated oil hydraulic motor pump and jack system within a single enclosure ensure durability and maintenance-free operation.

Key Features

  • Compact and Concealed: The all-in-one design includes an oil hydraulic motor pump and jack, ensuring a neat and unobtrusive installation.
  • Double Locking and Braking: Provides enhanced security and stability with braking in both directions.
  • Reliable and Safe: Built with top-quality internal components for safe and quiet movements, and features an adjustable thrust power by pressure valves.
  • Tested and Certified: C marked in compliance with ITT PDC No.2393-2008 type testing.
  • Emergency Release: Includes a left-handed and right-handed emergency mechanical release bracket made of pressed steel with an ergonomic spanner.

Technical Specifications

SpecificationDetails
Power Supply230V AC - 50Hz
Absorbed Power250 W
Absorbed Current1.2 A
Power Output0.18kW (0.25HP)
Torque250 - 400Nm
Working Temperature-20°C to +80°C
Protection StandardsIP67
Oil TypeFadini Oil
Opening/Closing Time~ 23 s (110°), ~ 28 s (175°)
Weight with Enclosure27kg
Frequency of UseVery intensive

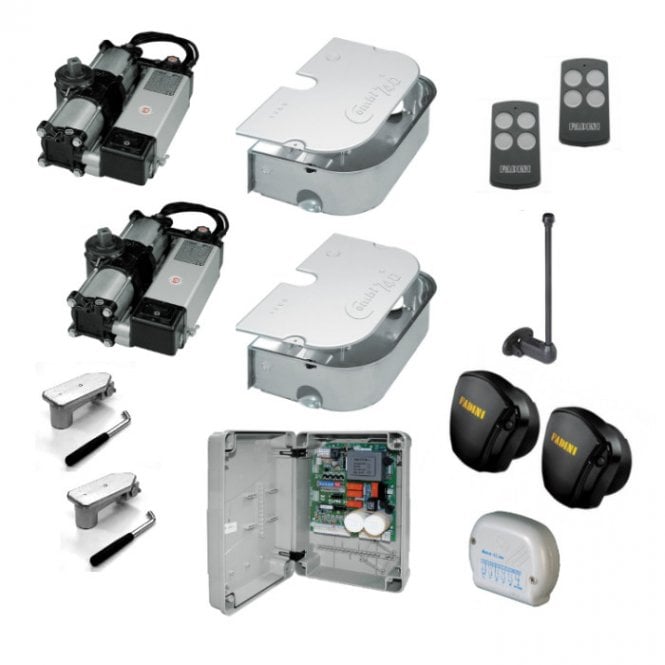

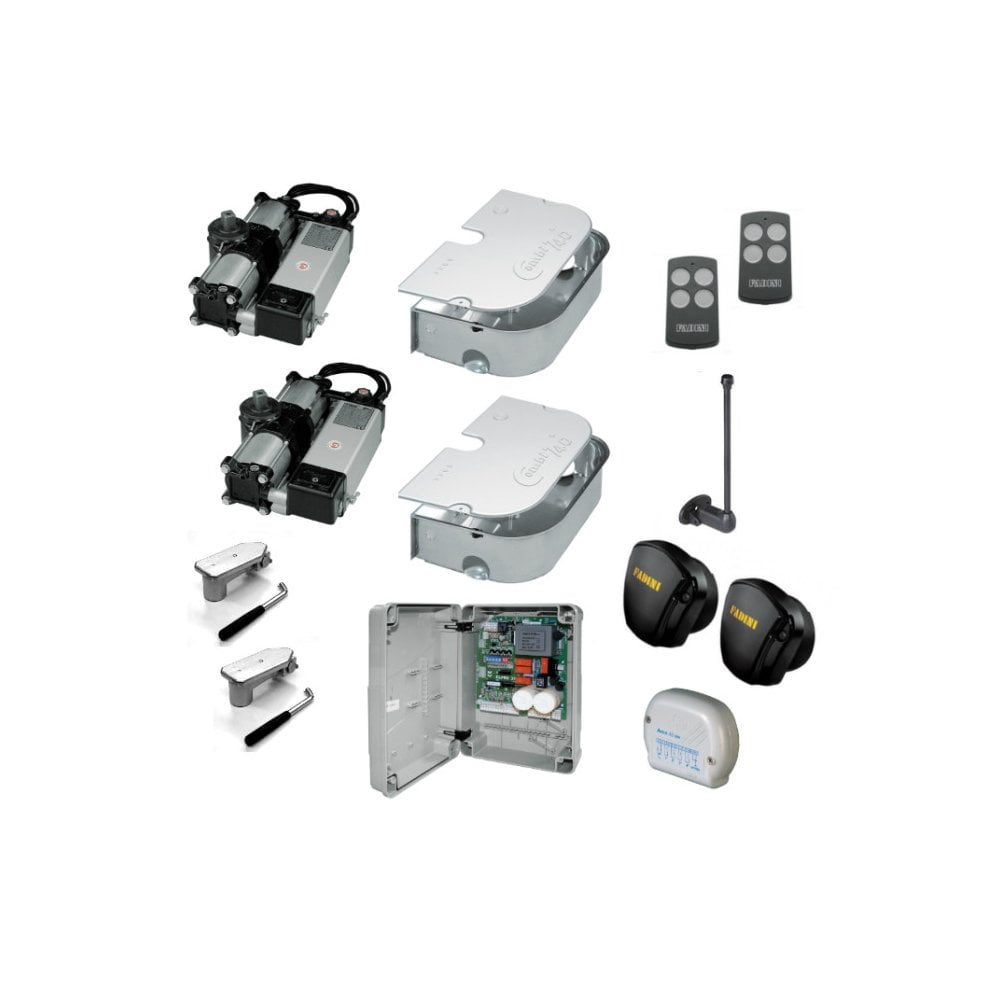

Kit Components

  • 1 x Left-handed COMBI 740 all-in-one underground operator (F/7677BB3SXL)
  • 1 x Right-handed COMBI 740 all-in-one underground operator (F/7677BB3DXL)
  • 1 x Left-handed emergency mechanical release (F/748SXL)
  • 1 x Right-handed emergency mechanical release (F/748DXL)
  • 2 x Zinc-coated steel enclosures (F/745L)
  • 1 x Elpro 27 control unit (F/7047L)
  • 1 x Astro 43 Radio receiver (F/4329L)
  • 2 x Radio remotes (433.92MHz) (F/4321L)
  • 1 x Aerial (F/4605L)
  • 1 x Pair of safety photocells (F/550L)

Kit Options

  • 110° degree rotation - Double Locking & Braking (F/7423L)
  • 110° degree rotation - Double Locking (F/7421L)
  • 175° degree rotation - Double Locking (F/7426L)

For more information or to purchase this kit, please contact our office.
