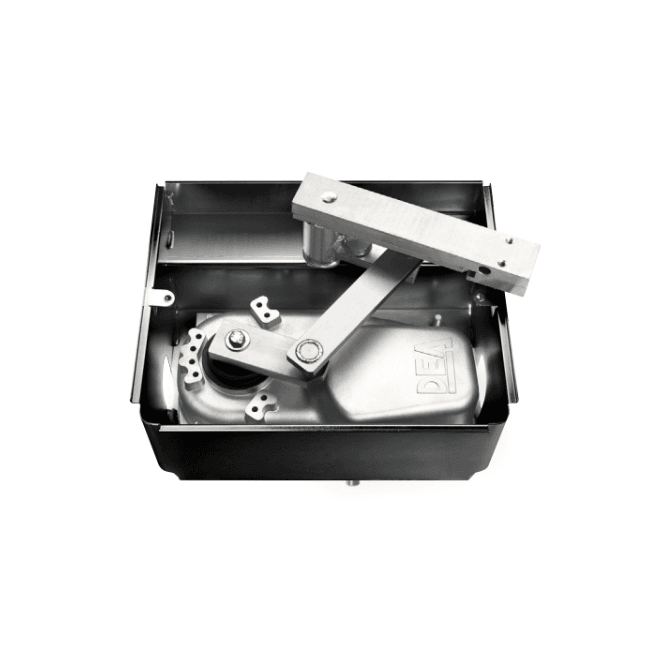

DEA GHOST 100 Motor Only | Swing Gate Motor | Up to 3.5m, 400kg | 230V or 24V

Product Overview

The GHOST 100 is a high-performance electromechanical underground automation system designed for swing gates in residential and collective applications. Engineered for gates up to 3.5 metres in length and 400kg in weight, this robust operator delivers reliable, discreet operation whilst maintaining the aesthetic appeal of your entrance. The underground installation ensures the motor remains completely hidden, making it ideal for prestigious installations where visual impact is important.

Built with a one-piece aluminium operator body, the GHOST 100 guarantees maximum watertight integrity with IP67 protection, ensuring long-lasting performance even in challenging weather conditions. The system comes complete with built-in mechanical stops as standard, eliminating the need for floor-mounted stops, and is supplied with an 8-metre power cable for simplified installation and connection to the control panel.

Key Features

• Underground Installation: Completely hidden operator maintains gate aesthetics
• One-Piece Aluminium Body: Ensures maximum watertight integrity and durability
• IP67 Protection: Fully protected against dust and water immersion
• Built-in Mechanical Stops: Eliminates the need for separate floor stops
• Universal Compatibility: Compatible with foundation boxes from other brands
• Extended Cable: Supplied with 8m power cable for easier installation
• 180° Opening Capability: Achieves full opening angle with art. 116G/N accessory
• DE@NET Compatible: Works with external universal control boards and NETLINK system
• NETCOM Ready: Compatible with remote installation maintenance and control management
• Quality Foundation Box: Cataphoresis-treated box provides excellent atmospheric resistance

Available Models

230V AC Models

• 100/CL (Code: 621252) - Underground operator with connection lever, mechanical stops, complete with 8m cable

24V DC Models

• 100/24CL (Code: 621262) - Underground operator with connection lever, mechanical stops, complete with 8m cable

Specifications

What's Included

• GHOST 100 underground operator with connection lever
• Built-in mechanical limit switches
• 8 metre power cable
• Installation manual

Note: Foundation box is NOT included and must be purchased separately. Control board required to complete installation.

Required Control Boards

• For 230V Models: NET230N/C control board (Code: 677610) - supplied with box
• For 24V Models: NET24N/C control board (Code: 678261) - supplied with box

Essential Accessories

Foundation Boxes (Required - Sold Separately)

• Art. 215 (Code: 629000) - Foundation box with cataphoresis treatment, complete with gate support and unlocking device
• Art. 215I (Code: 629010) - Stainless steel foundation box, complete with unlocking mechanism (recommended for high-salinity coastal environments)

Opening Angle Extension

• Art. 116G/N (Code: 629022) - Device to achieve 180° opening angle (fixes to art. 215 or 215I foundation boxes)

Additional Optional Accessories

• Art. KIT ADA 115/C (Code: 629392) - Adapter set for foundation box art. 115, art. 115I
• Art. KIT ADAB (Code: 629391) - Adapter set for other brand foundation boxes (dimensions 410x330x145mm)
• Art. BAT (Code: 629290) - Rechargeable battery kit for 24V operators, 12V-1.2Ah, complete with wiring cables and fixing plate
• Art. 118/XL (Code: 629032) - Additional reinforced limit switch for GHOST 100 motor in closed position
• GHOST RELEASE KEY (Code: 330610) - Replacement release key for GHOST operators

Installation Notes

• Foundation box must be purchased separately - choose between standard cataphoresis-treated (Art. 215) or stainless steel (Art. 215I) for coastal areas
• Control board is required to complete the installation and is not included with the motor
• For leaf lengths greater than 2m, an electric lock is recommended to secure the gate in the closed position
• Leaf height, structure, and wind exposure may reduce the stated capacity or necessitate an electric lock for shorter leaves
• Mechanical limit switches are included as standard - no additional floor stops required
• The 8m power cable facilitates easier electrical connection to the control panel
• Compatible with NETLINK technology when used with DE@NET control boards
• Foundation box dimensions: 420mm x 225mm x 68mm (length x width x height)

Why Choose GHOST 100?

The GHOST 100 represents the perfect balance of performance, reliability, and aesthetics for residential and collective gate automation. Its underground installation ensures complete invisibility, whilst the robust one-piece aluminium construction and IP67 protection guarantee long-term performance in all weather conditions. With built-in mechanical stops, extended power cable, and compatibility with modern smart control systems, the GHOST 100 offers a professional solution that's both installer-friendly and future-proof. Available in both 230V and 24V versions, there's a GHOST 100 model to suit every installation requirement.
