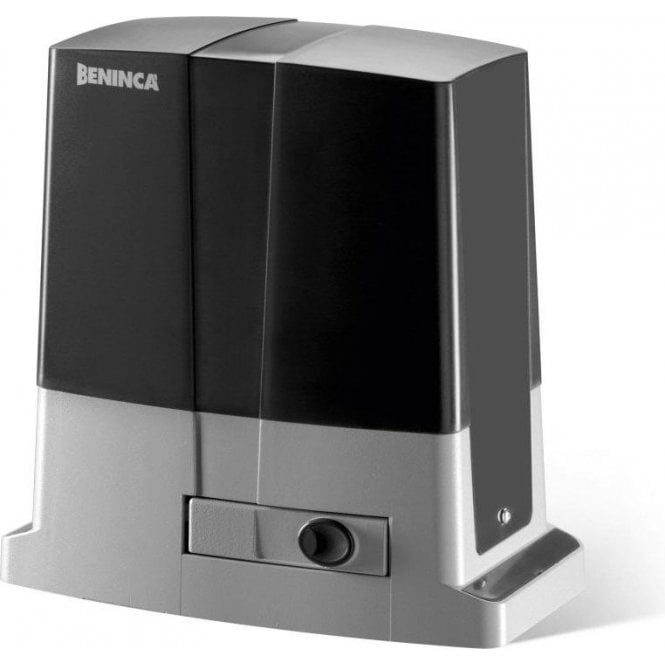

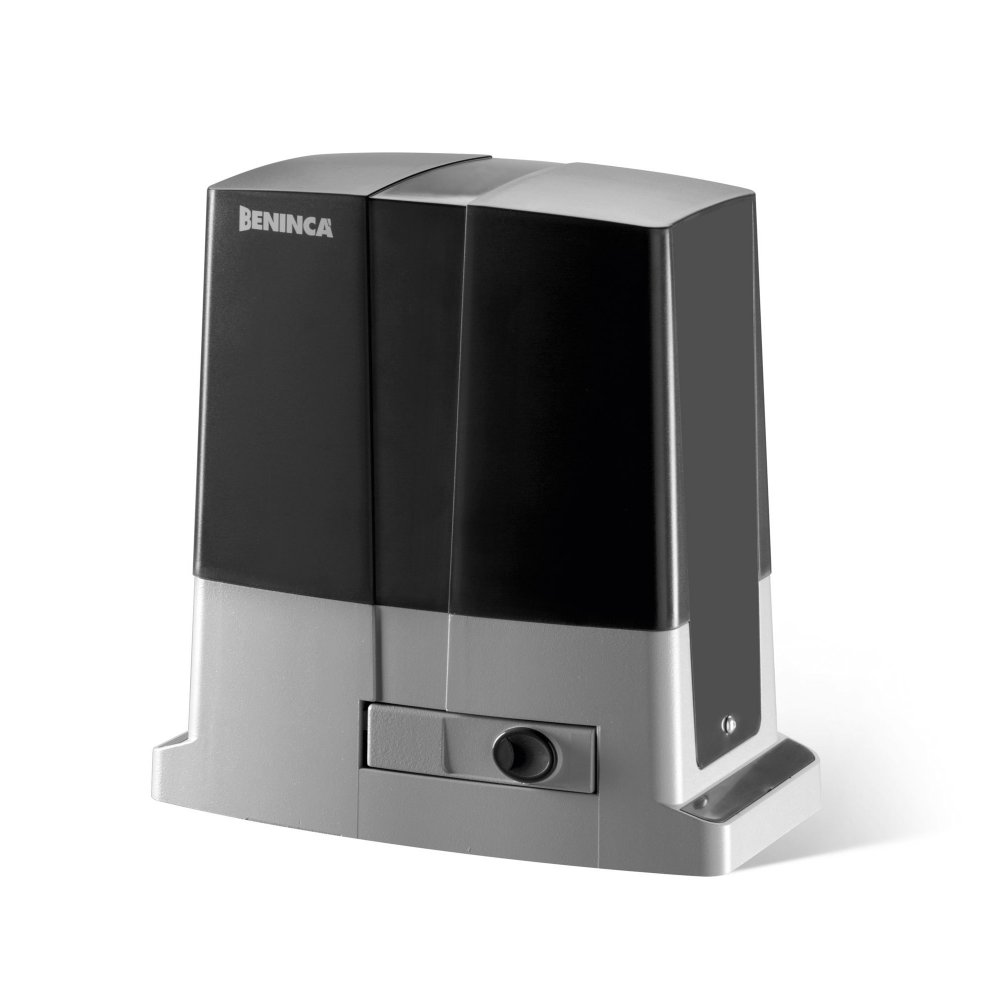

BENINCA BULL424SE | Sliding Gate Operator | Up to 400kg (24V)
- £565.11 £470.93 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview
The BULL424SE is a 24 Vdc gear motor designed for intensive use, featuring an integrated control unit and virtual encoder. It's ideal for applications requiring high performance and reliability.
Key Features
- 24 Vdc gear motor for intensive use with integrated control unit and virtual encoder
- Switching power supply 115/230 Vac, reducing energy consumption and ensuring long actuator lifespan
- Main control unit on top for easier wiring
- Virtual encoder for optimal management of slowing-down phases, movement tracking (STC system), and torque management
- Operation guaranteed during power failures through integrated battery backup
- Anti-crushing system with amperometric obstacle detection
- Compatible with X.BE accessory for KNX domotics integration
- Programmable through BeUP app and PRO.UP interface
- Reinforced foundation plate (Dima) included
Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 115 / 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 3.2 / 1.7 A |
| Maximum thrust | 535 N |
| Opening speed | 5.5 ÷ 12 m/min |
| Duty cycle | Intensive use |
| Protection level | IP44 |
| Built-in control unit | Yes |
| Integrated receiver | Yes |
| Encoder | No |
| Virtual encoder | Yes |
| Magnetic limit switches | No |
| Pinion for rack | M4 Z14 |
| Operating temperature | -20°C to +50°C |
| Lubrication | GREASE |
| Maximum gate weight | 450 kg |
| Weight | 8 kg |
| N. motors per pallet | 40 |
| Kit weight | 8.7 kg |
| N. kits per pallet | 40 |
Foundation Plate Details
Reinforced foundation plate (Dima) included with the following specifications:
- Dimensions: 326x164.5x2 mm
- Motor fixing distance: 301x75 mm
- 4 holes of Ø 8.5 mm
For more information or to place an order, please contact our sales team.
