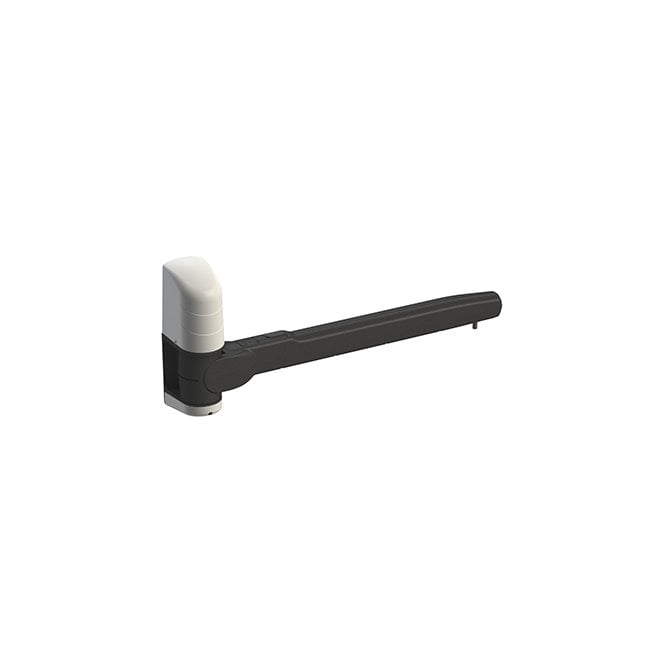

ROGER TECHNOLOGY H20 Brushless Motor | Up to 5m | 230V

ROGER TECHNOLOGY H20 Brushless Motor | Up to 5m | 230V

Swing Gates Operator
Code: H20*
  • From $922.56
Item out of Stock   |   Usually dispatched within 24 hours
Loading...
Ask A Question
Tell A Friend
Price Match

Product Overview

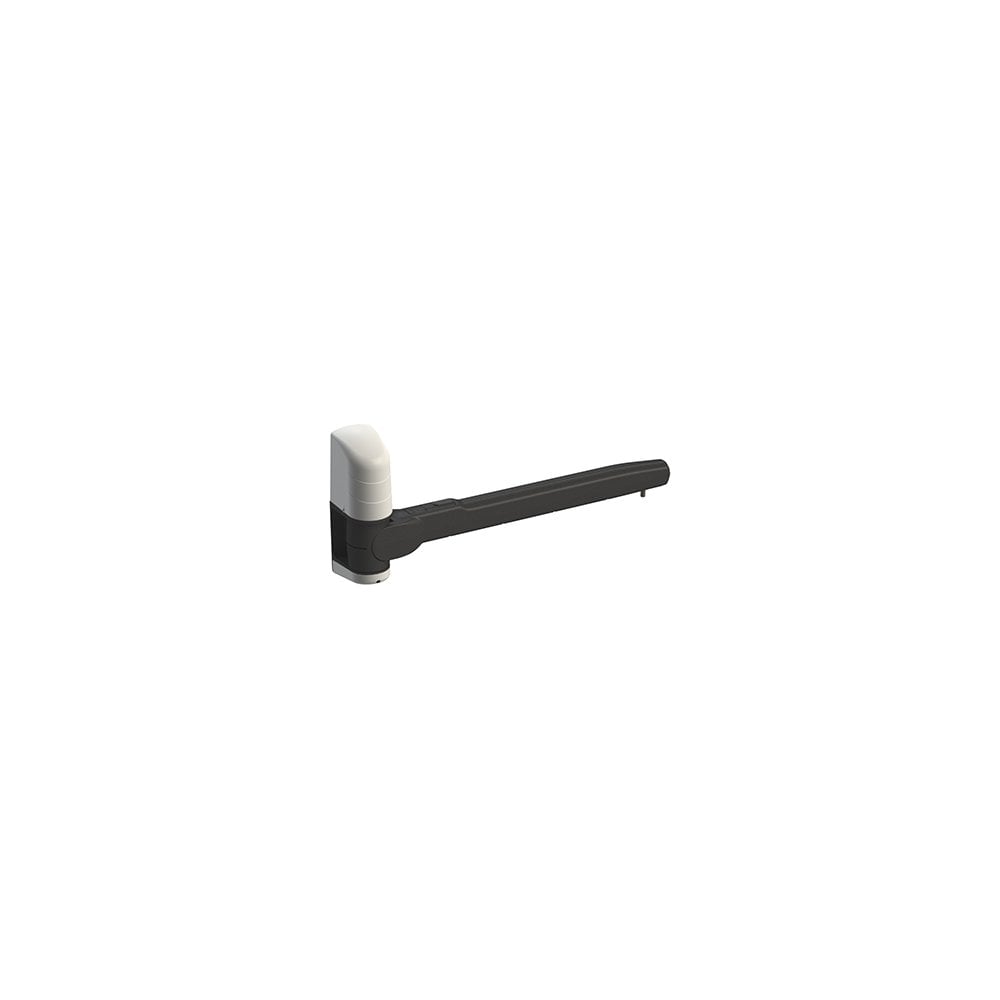

The H20 Brushless Motor is an electromechanical actuator designed for swing gates with leaves up to 3 or 5 meters. Operating on 230V AC, this irreversible motor offers robust performance with an encoder and mechanical stopper for both opening and closing. The motor is available in two versions: H20/370 for gates up to 3m and H20/550 for gates up to 5m, providing flexibility for different gate sizes.

Key Features

  • 230V power supply
  • Irreversible motor
  • Suitable for swing gates up to 3m or 5m (depending on chosen option)
  • Integrated encoder
  • Mechanical stopper for precise positioning

Operator Options

  • H20/370 - Up to 3m
  • H20/550 - Up to 5m

Specifications

SpecificationH20/370H20/550
Power line supply230V AC - 50Hz230V AC - 50Hz
Motor power supply230V AC230V AC
Power rating (W)200200
Frequency of use (%)40%40%
Thrust capacity (N)25002500
Operating temperature range (°C)-20 to +55-20 to +55
Protection levelIP43IP43
Reducer TypeIrreversibleIrreversible
Maneuver speed (cm/s)1.661.66
Opening time at 90° (seconds)1927
Stroke length (mm)370550
Motor thermal protection (°C)150150
Incorporated capacitor (µF)1010
Limit switch typeMechanical stopper for both opening and closingMechanical stopper for both opening and closing
Encoder typeOpticalOptical
Dimensions (L x W x H in mm)860 x 170 x 4251040 x 170 x 425

Accessories

Standard Accessories

  • MC779: Kit 2 mechanical stop for M20 - G20 - H20 series
  • KT201: Long front hinge plate, to weld

Other Accessories

  • R99/C/001: Signboard "Automatic Opening"
  • KT201/R: Screw-welded long front bracket
  • R99/C/001AL: Signboard "Automatic Opening" Aluminium version
