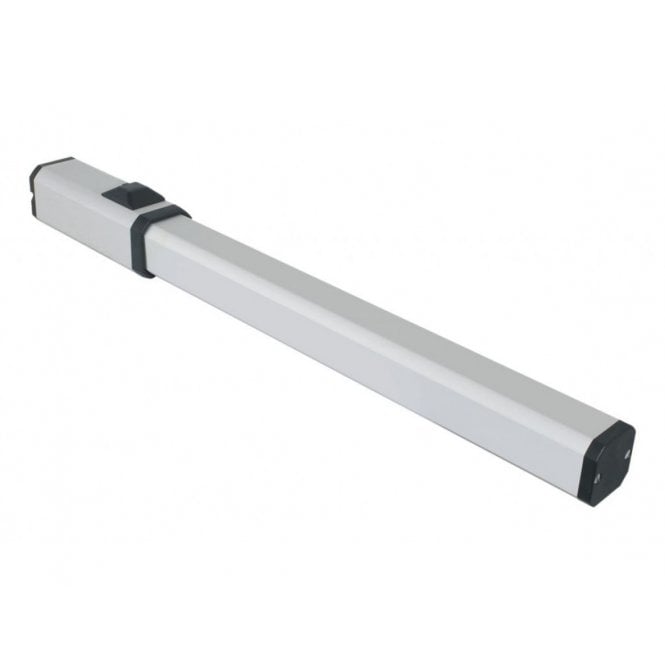

GIBIDI TOP EVO | Hydraulic Operator for Gates up to 6m (230v) | Heavy Duty Use
- From £625.20 £521.00 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview

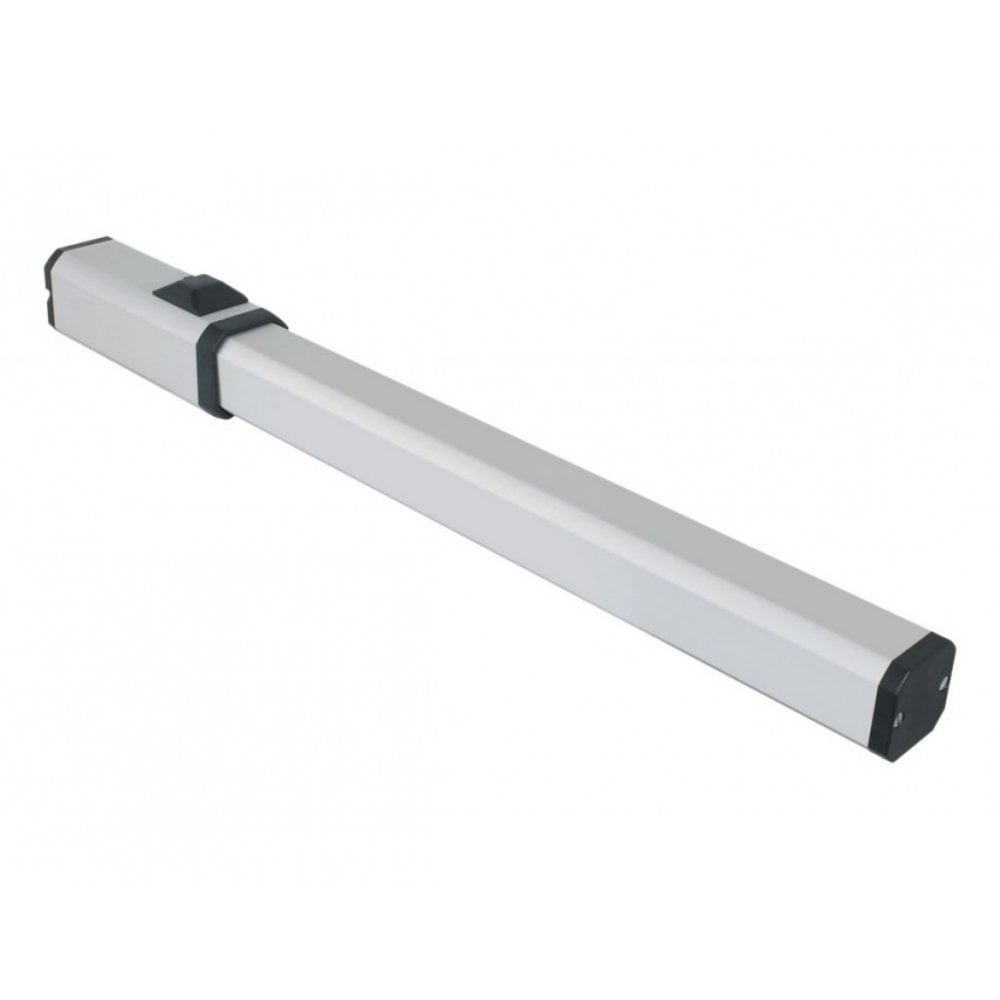

The TOP EVO hydraulic operator is designed for gates up to 6 meters in length and is suitable for both residential and intensive use. This 230 Vac operator is ideal for heavy, medium, and large size swing gates, offering reliable and efficient performance.
Key Features
- Easy to install - preloaded and factory adjusted, no purge valves or oil top-up required, mounting brackets supplied
- Silent and fast - hydraulic slowdowns integrated in the last 3cm of rod travel
- Technological and safe - built with unique vacuum loading process to prevent condensation and emulsion, gasket-free pump-distributor coupling
- Complete and reliable range - suitable for small residential gates to large commercial or industrial gates, special motors for intensive use
Product Description
The TOP EVO hydraulic operator is an advanced solution for automating swing gates up to 6 meters in length. Designed for heavy-duty use, it is suitable for both residential and commercial applications. The operator is easy to install, with no need for purge valves or oil top-up, and comes with all necessary mounting brackets.
This operator is extremely silent and fast, with hydraulic slowdowns integrated in the last 3cm of rod travel. Its unique vacuum loading process eliminates air residues inside, preventing condensation and emulsion. The pump-distributor coupling is gasket-free, ensuring long-lasting performance. The new die-cast aluminium back-end and torque settings valves enhance reliability and safety.
The TOP EVO range includes models suitable for a variety of gate sizes and weights, with special motors designed for intensive use. The operator features adjustable force and speed, electronic speed adjustment (using the BA230 control board), and a high degree of protection (IP65). It is capable of handling gates with a maximum leaf length of 6 meters and operates efficiently in temperatures ranging from -20°C to +60°C.
Specifications
| Technical Feature | TOP291E - ER - ER/S | TOP391E - ER - ER/S | TOP441E - ER - ER/S |
|---|---|---|---|
| Type of use | Heavy Duty | Heavy Duty | Heavy Duty |
| Frequency of use | 55% | 55% | 55% |
| Motor power supply | 230 Vac - 50/60 Hz | 230 Vac - 50/60 Hz | 230 Vac - 50/60 Hz |
| Absorbed power | 170W | 190W | 190W |
| Degree of protection | IP65 | IP65 | IP65 |
| Rod speed | 10 mm/s (20 mm/s for ER/S) | 10 mm/s (20 mm/s for ER/S) | 10 mm/s (20 mm/s for ER/S) |
| Max rod stroke | 265 mm (290 mm for E) | 265 mm (290 mm for E) | 425 mm (440 mm for E) |
| Max thrust force | 3000 N (2200 N for ER/S) | 4500 N (3000 N for ER/S) | 4500 N (3000 N for ER/S) |
| Force adjustment | Hydraulic | Hydraulic | Hydraulic |
| Speed adjustment | Electronic ** | Electronic ** | Electronic ** |
| Hydraulic slowdown | Yes (No for E) | Yes (No for E) | Yes (No for E) |
| Max leaf length | 3.5 m * | 4.5 m * | 6.0 m * |
| Operating temperature | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C |
| Rod diameter | 16 mm | 20 mm | 20 mm |
| Type of lubrication | OIL GBD PH-03 | OIL GBD PH-03 | OIL GBD PH-03 |
| Operator weight | 7.7 Kg | 8.7 Kg | 10 Kg |
NOTE: * In case of blind leaf or wind presence or leaf over 2.5 m, the use of the electric lock is necessary. ** By the use of the BA230 control board
Applications
The TOP EVO hydraulic operator is ideal for a wide range of applications, from small residential gates to large commercial or industrial gates. Its heavy-duty design and advanced features ensure reliable performance even under intensive use conditions.
