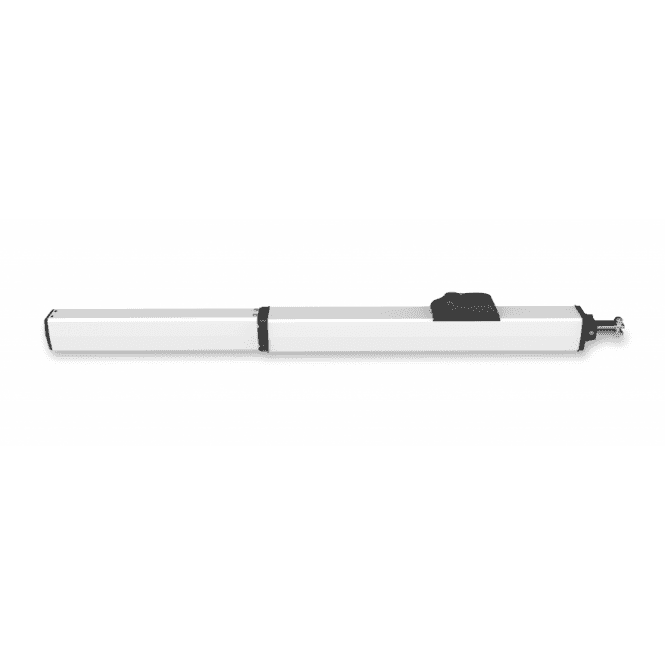

DEA OLI/N Hydraulic Operator | 230V Swing Gate | Up to 4.5m, 500kg

DEA OLI/N Hydraulic Operator | 230V Swing Gate | Up to 4.5m, 500kg

Swing Gate Operator
Code: OLI/N*
  • From £536.40 Ex Vat
Item in Stock   |   Usually dispatched within 24 hours
Loading...
Ask A Question
Tell A Friend
Price Match

Product Overview

The DEA OLI/N Hydraulic Operator for Swing Gates is designed to handle gates up to 4.5 meters in length and weighing up to 500 kg. This 230V operator is ideal for high-intensity use, offering a variety of models to suit different installation needs, including options for locking, reversible, and slow operation. Its robust build ensures reliable performance, even in demanding conditions.

Product Description

The OLI/N hydraulic automation kit provides a versatile solution for swing gates. Available in both short (270mm stroke) and long (400mm stroke) versions, it includes options for locking in open, closed, or both positions. The operator features a quick release mechanism with a customized metal key, ensuring convenience even during power outages. Standard installation requires welding the fixing plates, though adjustable plates (OLI/SFR) are available for greater flexibility.

Key Features

  • High Capacity: Suitable for gates up to 4.5m and 500kg.
  • Versatile Models: Available in various configurations to meet specific installation requirements.
  • Durable Construction: Made with high-quality materials for long-lasting performance.
  • Quick Release Mechanism: Allows manual operation in case of power failure.
  • Remote Control Compatible: Can be managed remotely via NETCOM for easy maintenance and operation.

What's in the Box

  • 1 x DEA OLI/N Hydraulic Operator
  • 1 x Control Board (NET230N/C)
  • Customized metal key for quick release
  • Fixing plates (standard, weldable)

Specifications

  • Power Supply: 230V ~ ± 10 % (50/60 Hz)
  • Maximum Power Absorption: 170W
  • Max Thrust: 3980N to 5600N
  • Max Traction Force: 3200N to 4460N
  • Duty Cycle: 50 to 60 cycles/hour
  • Maximum Cycles in 24h: 320 to 480 cycles
  • Built-in Capacitor: 8μF
  • Operating Temperature: -0.4°C to 50°C
  • 90° Opening Time: 21 to 40 seconds
  • Weight with Packing: 11.4kg to 13kg
  • Sound Pressure: Less than 70dBA
  • Protection Level: IP55
  • Used Oil: AGIP Arnica A15
