BENINCA BOB50 | Electromechanical Worm Screw Ram Operator | Up to 5m Leaf
- From £523.53 £436.28 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview

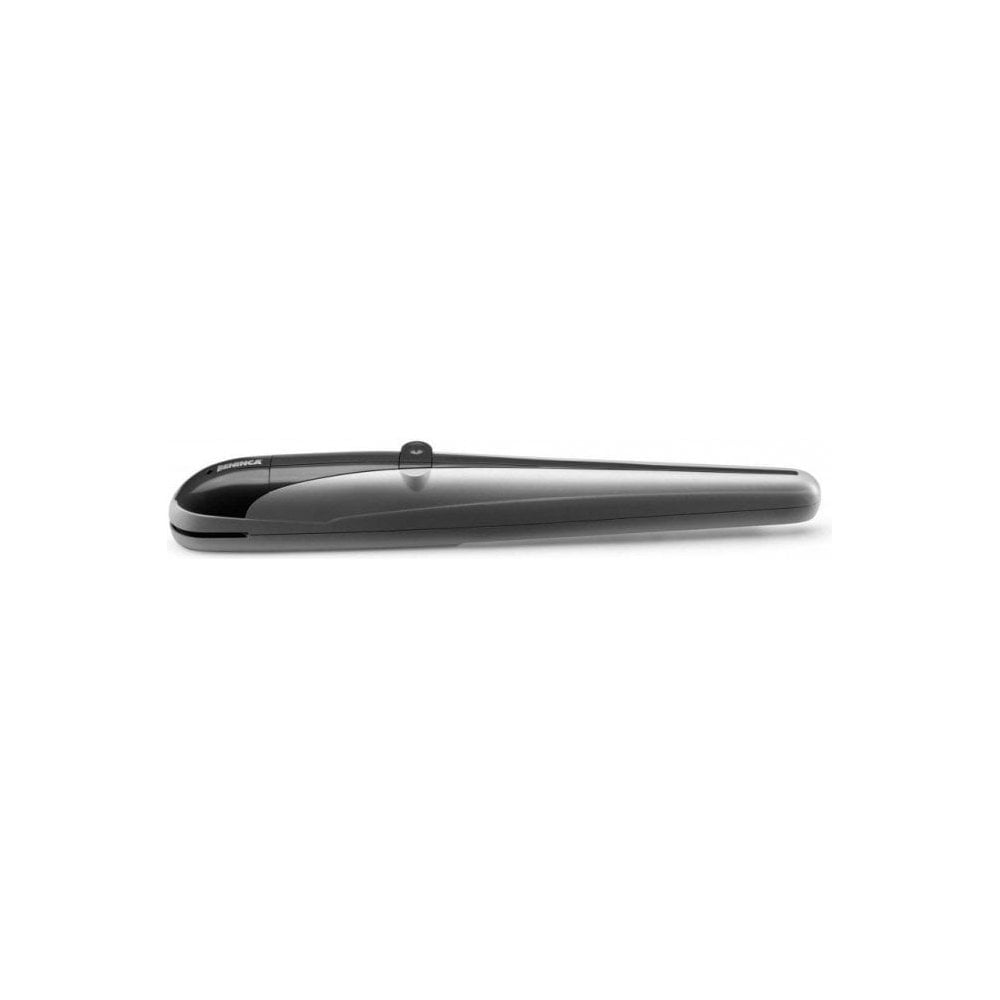

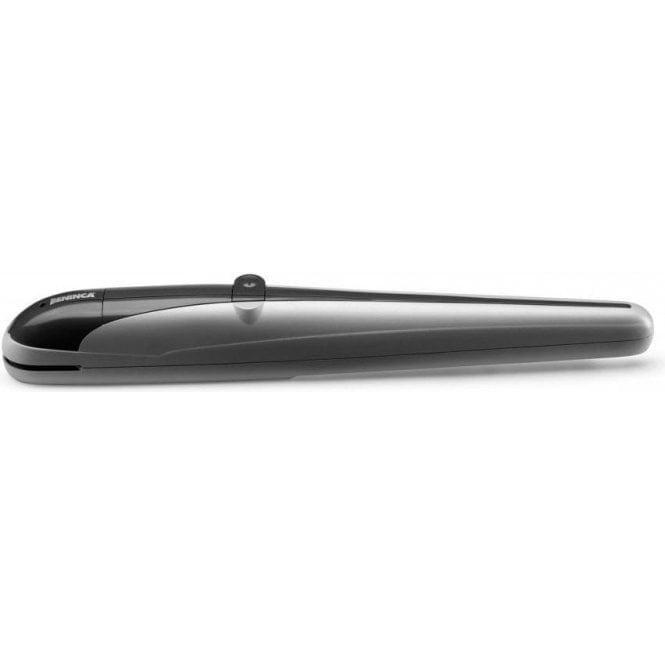

The BENINCA BOB50 Series Electromechanical Worm Screw Ram operators are designed for swing gates with leaves up to 5 meters. These reliable and robust operators ensure smooth and secure gate automation. Available in two versions and two color options, each operator includes a personalized release key and is backed by a 2-year guarantee.
Available Options
Version
- 230V Models: - BOB50ME: Standard finish - BOB50ME.DA: Dark finish
- 24V Models: - BOB5024E: Standard finish - BOB5024E.DA: Dark finish
Color Options
- Standard: Classic grey finish
- Dark: Dark finish
Product Description
The BOB50 operators feature rolled ball screws Ø 20 mm and easy access release from above. They are designed for quick installation with adjustable mechanical stops for opening and closing. The units are compatible with BRAINY control panels and can be integrated into complete automation systems.
Key Features
- Gate Capacity: Suitable for swing gate leaves up to 5m
- Installation Dimensions: A(150-225mm), B(150-225mm), C(90-155mm)
- Enhanced Safety: Equipped with encoders for precise movement and control
- Quick Installation: Features adjustable mechanical stops and easy access release from above
- Version-Specific Benefits: - 230V version offers reliable performance with 30% duty cycle - 24V version features intensive use capability and enhanced obstacle detection
- Warranty Coverage: 2-year guarantee for peace of mind
Technical Specifications
| Specification | 230V Model (BOB50ME) | 24V Model (BOB5024E) |
|---|---|---|
| Power Supply | 230 Vac (50-60Hz) | 24 Vdc |
| Max Absorbed Current | 1.4 A | 6.7 A |
| Maximum Thrust | 3500 N | 2200 N |
| Opening Time | 26" | 21" |
| Duty Cycle | 30% | Intensive use |
| Standard Stroke | 455 mm | 455 mm |
| Max Stroke | 520 mm | 520 mm |
| Protection Level | IP44 | IP44 |
| Operating Temperature | -20°C / +50°C | -20°C / +50°C |
| Weight | 11.6 kg | 10.2 kg |
Compatible Accessories
- B5.SR: Bracket to attach with screws
- BOB.SN: Rear joint for sloping openings
- B.P: Screw-on plate
- CABLE.24E: 100m cable reel for encoder connection (24V version)
