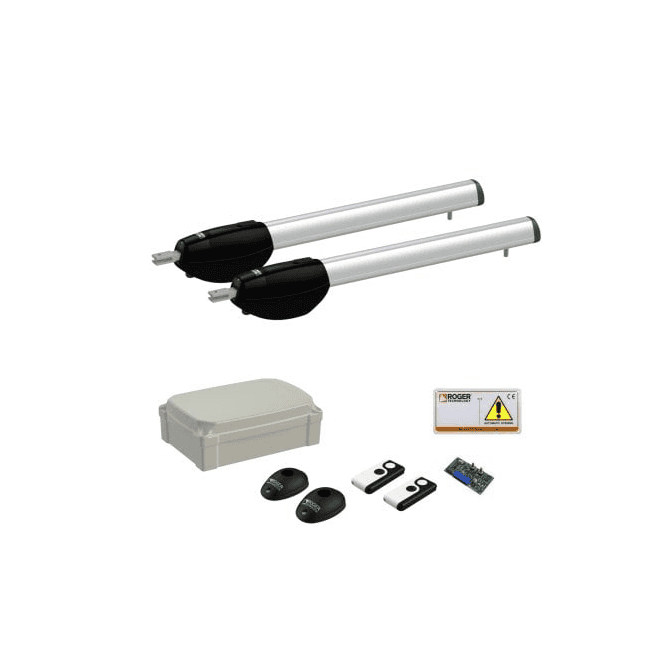

ROGER TECHNOLOGY Swing Gates Pair Above Ground Kit | BE20 Brushless
- From £1,217.82 £1,014.85 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview
The BE20 Brushless Pair Swing Gate Kit is designed for above-ground installation, ideal for swing gates with leaves up to 4 meters. This kit features super intensive use capabilities, with high-speed options available for faster operation. Choose between 24V and 36V options based on your specific needs.
Key Features
- Double Set: Includes two BE20 brushless electromechanical 36v above ground motors.
- Super Intensive Use: Suitable for high-frequency operations.
- Leaf Size: Compatible with swing gates up to 2.5m or 4m (depending on the chosen option).
- High Speed Option: Available for faster gate operation.
- Voltage Options: 24V or 36V (depending on the chosen option).
- Irreversible: Ensures secure gate locking.
- Mechanical Stoppers: Provides reliable limit switches for opening and closing.

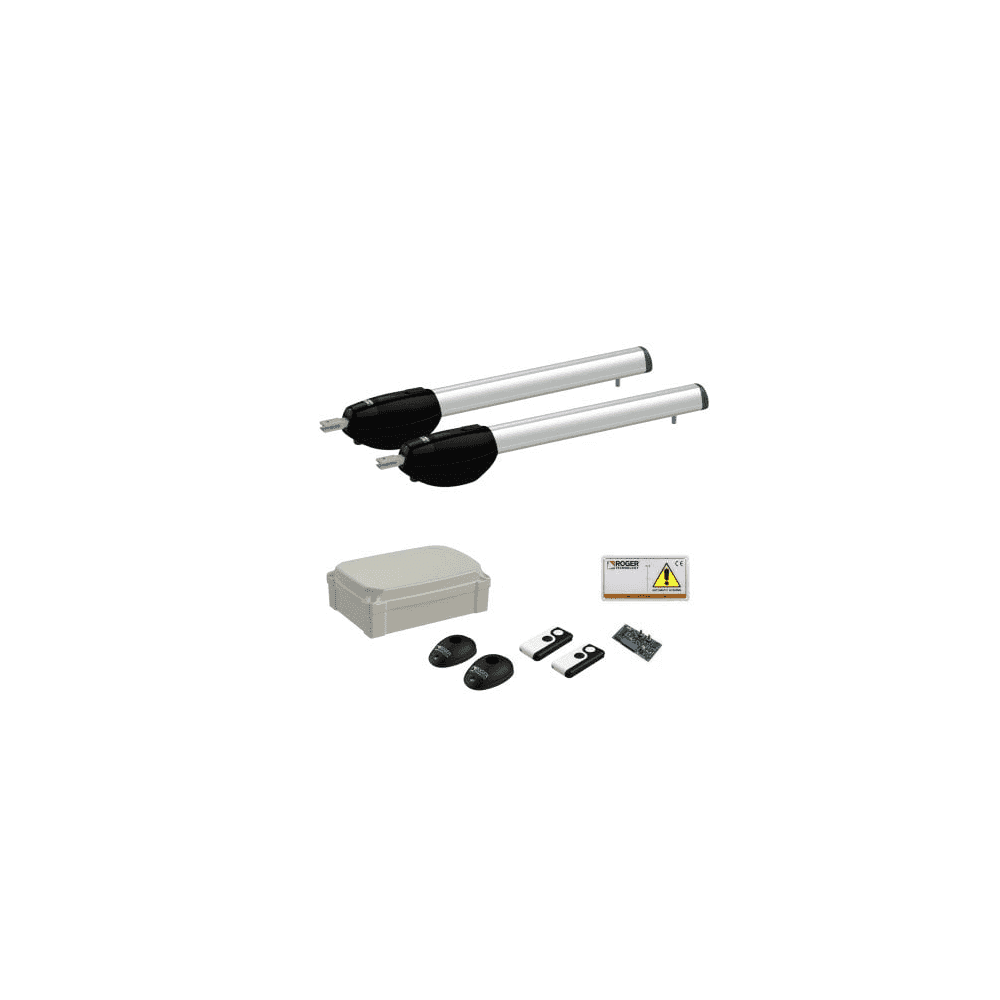

What's in the Box
- KIT BE20/200
- 2x BE20/200 Operators
- 1x B70/2ML/BOX Control Panel
- 1x H93/RX22A/I Plug-in Radio Receiver
- 2x SYNUS/2 Transmitters
- 1x R90/F4ES Photocells
- KIT BE20/212/HS - High Speed
- 2x BE20/200/HS Operators
- 1x EDGE1/BOX Control Panel
- 1x H93/RX22A/I Plug-in Radio Receiver
- 2x SYNUS/2 Transmitters
- 1x R90/F4ES Photocells
- KIT BE20/400
- 2x BE20/400 Operators
- 1x EDGE1/BOX Control Panel
- 1x H93/RX22A/I Plug-in Radio Receiver
- 2x SYNUS/2 Transmitters
- 1x R90/F4ES Photocells
Specifications
| Specification | KIT BE20/200 | KIT BE20/212/HS - High Speed | KIT BE20/400 |
|---|---|---|---|
| Power line supply | 230V AC - 50Hz | 230V AC - 50Hz | 230V AC - 50Hz |
| Motor power supply | 24V | 36V | 36V |
| Power rating | 200W | 200W | 200W |
| Frequency of use | Intensive use | Intensive use | Intensive use |
| Thrust | 100 - 2200N | 100 - 2200N | 100 - 2800N |
| Operating temperature | -20°C to +55°C | -20°C to +55°C | -20°C to +55°C |
| Protection level | IP44 | IP44 | IP44 |
| Reductor Type | Irreversible | Irreversible | Irreversible |
| Manoeuvre speed | 1.66 cm/s | 3 cm/s | 1.66 cm/s |
| Opening time | 15-25 s | 10-15 s | 17-26 s |
| Stroke | 400 mm | 400 mm | 550 mm |
| Limit switch | Mechanical stopper in opening and closing | Mechanical stopper in opening and closing | Mechanical stopper in opening and closing |
| Encoder | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day | 800 | 800 | 1000 |
| Dimensions (L x W x H) | 867 x 105 x 155 mm | 867 x 105 x 155 mm | 1019 x 105 x 155 mm |
Why Choose the BE20 Brushless Pair Swing Gate Kit?
The BE20 Brushless Pair Swing Gate Kit offers a robust and reliable solution for automating your swing gates. With intensive use capabilities and high-speed options, it ensures your gates operate smoothly and efficiently, providing enhanced security and convenience.
