ROGER TECHNOLOGY BE20 Brushless Single Kit

Swing Gates Single Above Ground Kit

Code: KIT BE20/S*

From £857.36 £714.47 Ex Vat Ex Vat Inc Vat Inc Vat
|
|
(%)

Item in Stock | Usually dispatched within 24 hours

Product Details
Delivery & Returns
Payment & Security
Reviews

Product Overview

The BE20 Brushless Single Kit is an electromechanical above ground motor designed for super intensive use, available in 24V or 36V options. This irreversible motor features a native encoder onboard and mechanical stoppers in both opening and closing positions. It is ideal for swing gates with leaves up to 2.5m or 4m, depending on the chosen option. The kit includes all necessary components for reliable and efficient gate automation.

Key Features

Single set
Super intensive use
Supports swing gates with leaves up to 2.5m or 4m (depending on chosen option)
High speed option available
24V or 36V power supply (depending on chosen option)
Irreversible design

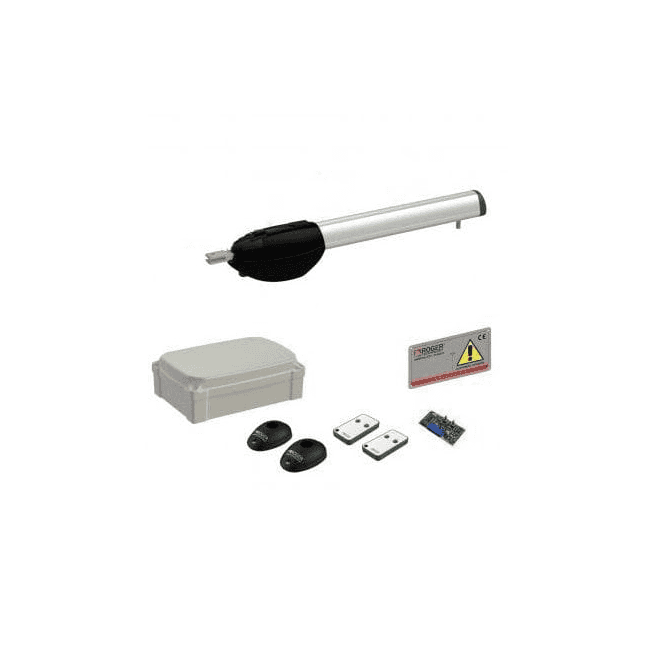

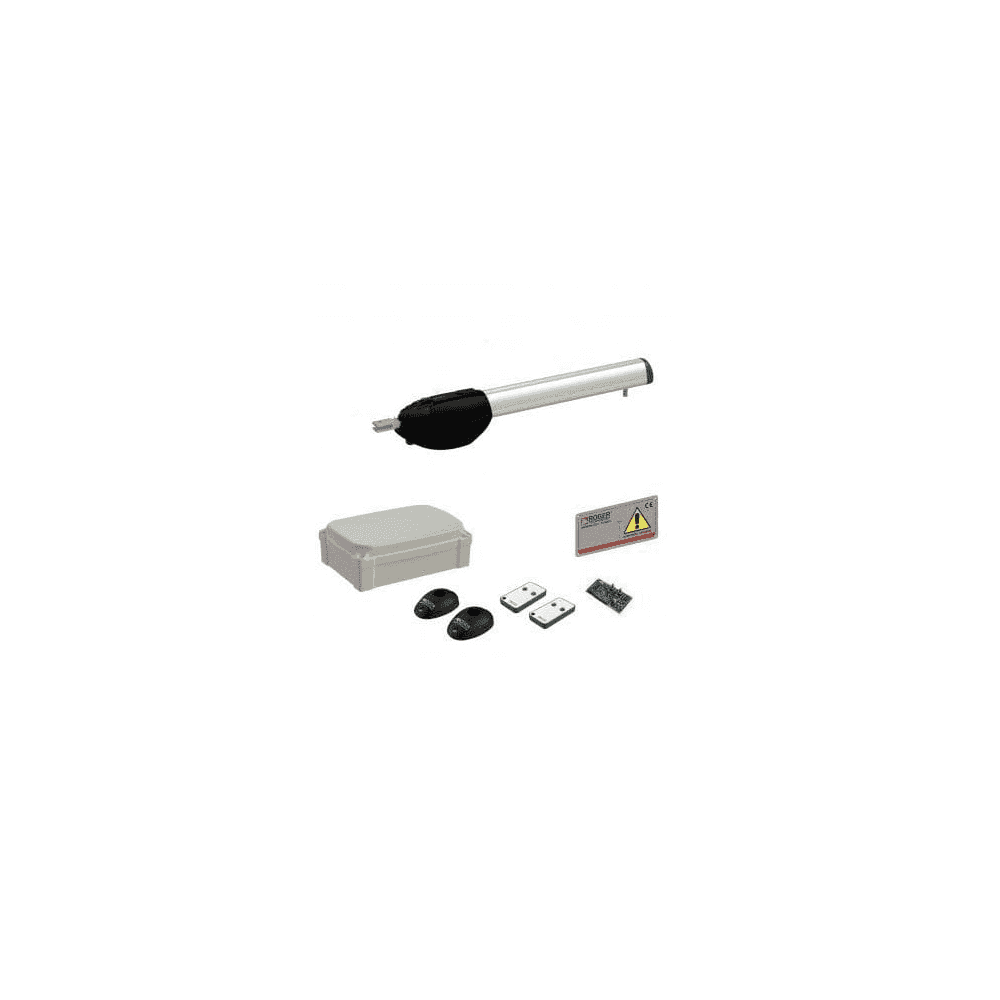

What's in the Box

KIT BE20/200/S
Operator: 1x BE20/200
Control Panel: 1x B70/2ML/BOX
Plug in Radio Receiver: 1x H93/RX22A/I
Transmitters: 2x SYNUS/2
Photocells: 1x R90/F4ES
LED: 1x FIFTHY/24
KIT BE20/200/HS/S (High Speed)
Operator: 1x BE20/200/HS
Control Panel: 1x EDGE1/BOX
Plug in Radio Receiver: 1x H93/RX22A/I
Transmitters: 2x SYNUS/2
Photocells: 1x R90/F4ES
LED: 1x FIFTHY/24
KIT BE20/400/S
Operator: 1x BE20/400
Control Panel: 1x EDGE1/BOX
Plug in Radio Receiver: 1x H93/RX22A/I
Transmitters: 2x SYNUS/2
Photocells: 1x R90/F4ES
LED: 1x FIFTHY/24

Specifications

Specification	KIT BE20/200/S	KIT BE20/200/HS/S (High Speed)	KIT BE20/400/S
Power line supply	230V AC - 50Hz	230V AC - 50Hz	230V AC - 50Hz
Motor power supply	24V	36V	36V
Power rating	200W	200W	200W
Frequency of use	Intensive use	Intensive use	Intensive use
Thrust	100 - 2200N	100 - 2200N	100 - 2800N
Operating temperature	-20°C to +55°C	-20°C to +55°C	-20°C to +55°C
Protection level	IP44	IP44	IP44
Reductor Type	Irreversible	Irreversible	Irreversible
Manoeuvre speed	1.66 cm/s	3 cm/s	1.66 cm/s
Opening time	15-25 s	10-15 s	17-26 s
Stroke	400 mm	400 mm	550 mm
Limit switch	Mechanical stopper in opening and closing	Mechanical stopper in opening and closing	Mechanical stopper in opening and closing
Recommended digital controllers	-	-	-
Encoder	Digital native encoder SENSORLESS 48 PPR	Digital native encoder SENSORLESS 48 PPR	Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop)	800	800	1000
Maximum dimension product (L x W x H)	867 x 105 x 155 mm	867 x 105 x 155 mm	1019 x 105 x 155 mm
