GIBIDI AGO KIT K160/BFSLT & K164/BFSLT | Above Ground Kit for Gates up to 4 m | 230 Vac & 24 Vdc
- From $1,097.84 $1,097.84 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview

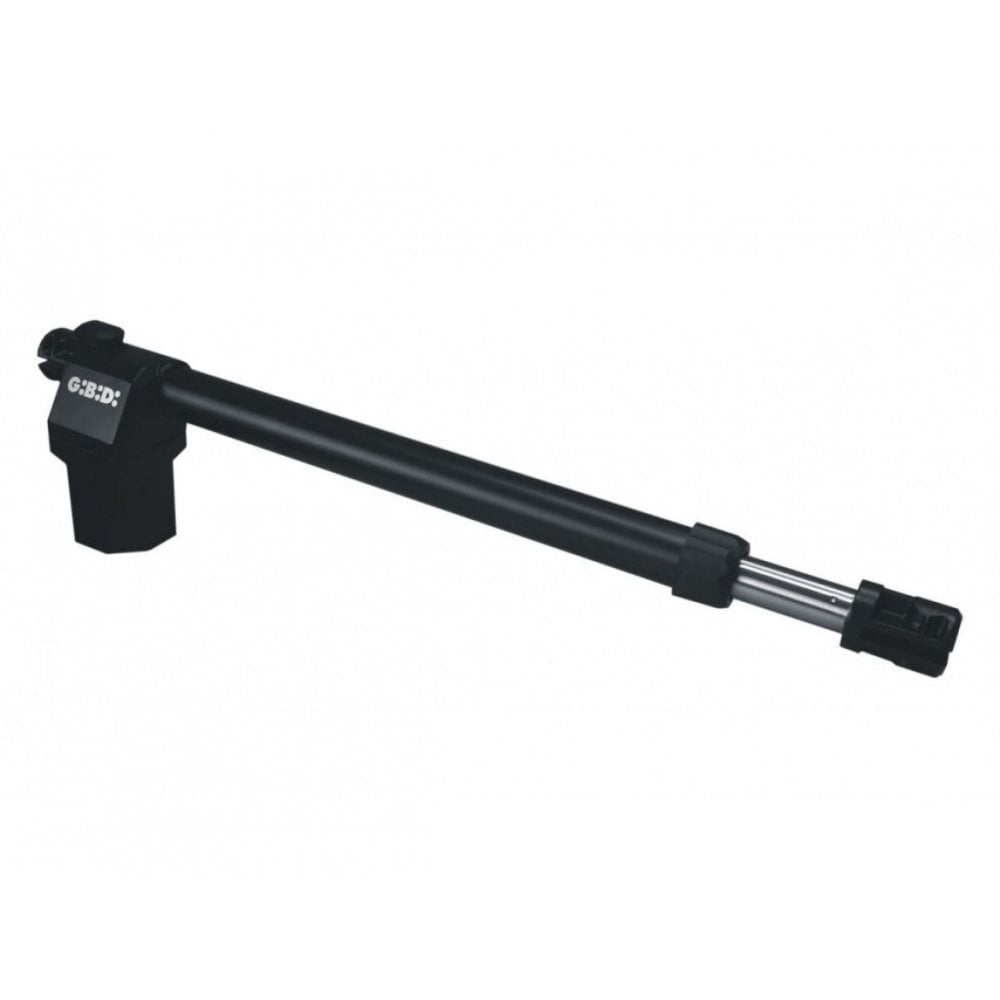

The AGO KIT - Above Ground Kit for Gates up to 4 meters - is an electromechanical operator kit available in both 230 Vac and 24 Vdc versions with an encoder. It is designed for medium and large swinging gates, suitable for residential and heavy use applications.
Key Features
- Easy to install with adjustable brackets
- Silent and fast movement with steel, bronze-aluminium gears
- 24 Vdc version includes encoder for automatic programming and anti-crushing sensitivity
- Complies with EN 12453 safety standards
- Compact design, made with die-cast aluminium and stainless steel
- Optional battery kit for operation during power cuts
Product Description
EASY TO INSTALL
Thanks to the adjustable brackets, it is not necessary to weld for installation.
SILENT AND FAST
Gears in steel, bronze-aluminium allowing for a high and adjustable speed of movement.
TECHNOLOGICAL AND SAFE
The 24 Vdc version is provided with an encoder to manage automatic programming and the adjustment of integrated anti-crushing sensitivity. Complies with the highest safety level as per EN 12453 standards.
DESIGN AND RELIABILITY
The most compact in its category with a tapered and simple design, suitable for every kind of gate. Made completely in die-cast aluminium and steel powder coating painted. The rod is in stainless steel.
POWER CUT/BATTERY BACK-UP
By the use of an optional battery kit, the gates can operate during the loss of a mains power supply.
Specifications
| Feature | AGO400 | AGO424E |
|---|---|---|
| Type of use | Residential | Residential/Heavy Duty |
| Frequency of use | 30% | 90% |
| Motor power supply | 230 Vac - 50/60 Hz | 24 Vdc |
| Absorbed power | 1.5 A | 0.5 - 5.5 A |
| Protection degree | IP43 | IP43 |
| Rod speed | 18 mm/s | 18 mm/s |
| Max rod stroke | 400 mm | 400 mm |
| Max thrust force | 1600 N | 1500 N |
| Adjustable force | Electronic | Electronic |
| Adjustable speed | Yes | Yes |
| Max leaf width* | 4 m * | 4 m * |
| Operating temperature | -25°C to +60°C | -25°C to +60°C |
| Encoder/limit switch | No | Encoder |
| Type of lubrication | Grease GBD WH-01 | Grease GBD WH-01 |
| Weight of the unit | 5.5 Kg | 5.5 Kg |
NOTE: *In case of blind leaf or wind presence or leaf over 2.5 m, the use of the electric lock is necessary
What's in the Box
| Item | KIT AGO400 (K160/BFSLT) | KIT AGO424E (K164/BFSLT) |
|---|---|---|
| AGO operators | 2x | 2x |
| Gate warning plate (AJ75800) | 1x | 1x |
| MAKO remote control 433Mhz (AU03100) | 2x | 2x |
| Wall mounted key selector model DCS100 (AU01940) | 1x | 1x |
| Pair of DCF180 wall mounted photocells (AU02250) | 1x | 1x |
| Complete flashing lamp device (70710 - 70724) | 1x | 1x |
| Radio receiver board | 1x | 1x |
| For 1 or 2 motors (F4) (AS06320) | 1x | Not Applicable |
| For 1 or 2 motors (BE24) (AS06250) | Not Applicable | 1x |
| 2 channels plug-in receiver board for control units (AU02910) | 1x | Not Applicable |
