Product Overview

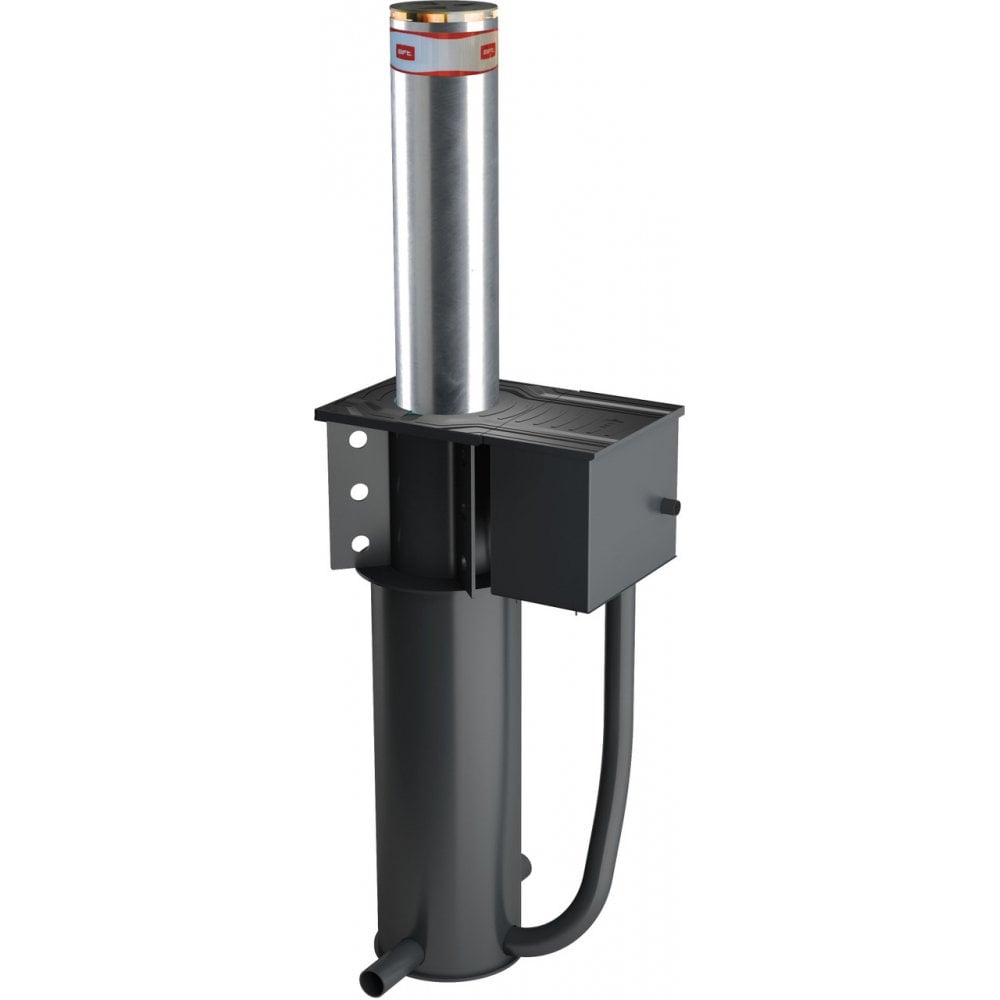

The BFT XPASS B 1200 K12 is a hydraulic anti-terrorism bollard equipped with an LED light crown and an optional Emergency Fast Operation (EFO) function. Designed to provide high-level security, this bollard is crash-tested and certified to IWA14-1:2013 standards, ensuring robust protection against vehicular threats. Each bollard operates independently, maintaining functionality even if one control unit fails. Available in a stainless steel finish, it is suitable for various environments, including private, commercial, and public applications.

Key Features

• Hydraulic anti-terrorism bollard with LED light crown and optional EFO
• Certified to IWA14-1:2013 standards
• Independent pump system for continued operation
• Stainless steel finish for durability and aesthetics
• Integrates with Ranch E fixed bollard for enhanced protection
• 1200mm height and 330mm diameter with 25mm shaft thickness
• Raising time of 5.3 seconds
• Perseo CBD control unit
• Breaking resistance of 2,100,000 Joules
• Suitable for up to 2,000 operations per day
• Reversible manual operation without power
• IP67 protection rating
• Temperature range from -40°C to 60°C

Product Description

The BFT XPASS B 1200 K12 Hydraulic Anti-terrorism Bollard offers unparalleled security with its robust hydraulic mechanism and independent pump system. Certified under IWA14-1:2013 standards, this bollard is designed to withstand high-impact vehicular attacks, providing reliable protection. Standing at 1200mm with a diameter of 330mm and a shaft thickness of 25mm, it boasts a breaking resistance of 2,100,000 Joules.

This bollard includes an optional EFO function, enabling rapid raising of the shaft in emergencies. The XPASS B 1200 K12 can be integrated with the Ranch E fixed bollard, offering flexible configurations for securing defined areas. Its quick raising time of 5.3 seconds is managed by the Perseo CBD control unit, making it ideal for high-traffic areas with up to 2,000 operations per day. The manual reversible operation ensures functionality during power outages, and the IP67 rating guarantees durability in extreme weather conditions from -40°C to 60°C.

This kit includes:

• 1 x BFT XPASS B 1200 K12 Hydraulic Anti-terrorism Bollard with LED Light Crown and optional EFO (24v)
• 1 x Heavy Duty Foundation Boxes
• 1 x BFT Perseo CBD Control Panel
• 2 x BFT Mitto RB 2 Button Transmitters
• 1 x Pair of BFT Safety Photocells
• 1 x BFT Antenna
• 1 x Manual Release Mechanism

Specifications

Additional Purchase Information

1. Please select the bollard with your preferences above.
2. The BFT range of bollards require a specific Perseo CBE Bollard Controller (one controller can run up to 4 bollards simultaneously).
3. We recommend Mitto B Two Channel Transmitters for access control.
4. We recommend PROCON loop detectors (one loop detector per separate entrance or exit).
5. Loop detectors require specific loop cable (100 metres is usually sufficient for 3 or 4 small/medium loops).
6. For additional safety, we recommend traffic lights (one per separate entrance or exit).
