ROGER TECHNOLOGY BI/008 Bionik Brushless Barrier | Up to 8 Meters | 36V DC | Barrier Only
- $4,019.95 $4,019.95 Ex Vat Ex Vat Inc Vat Inc Vat
- |
- |
- (%)
Product Overview

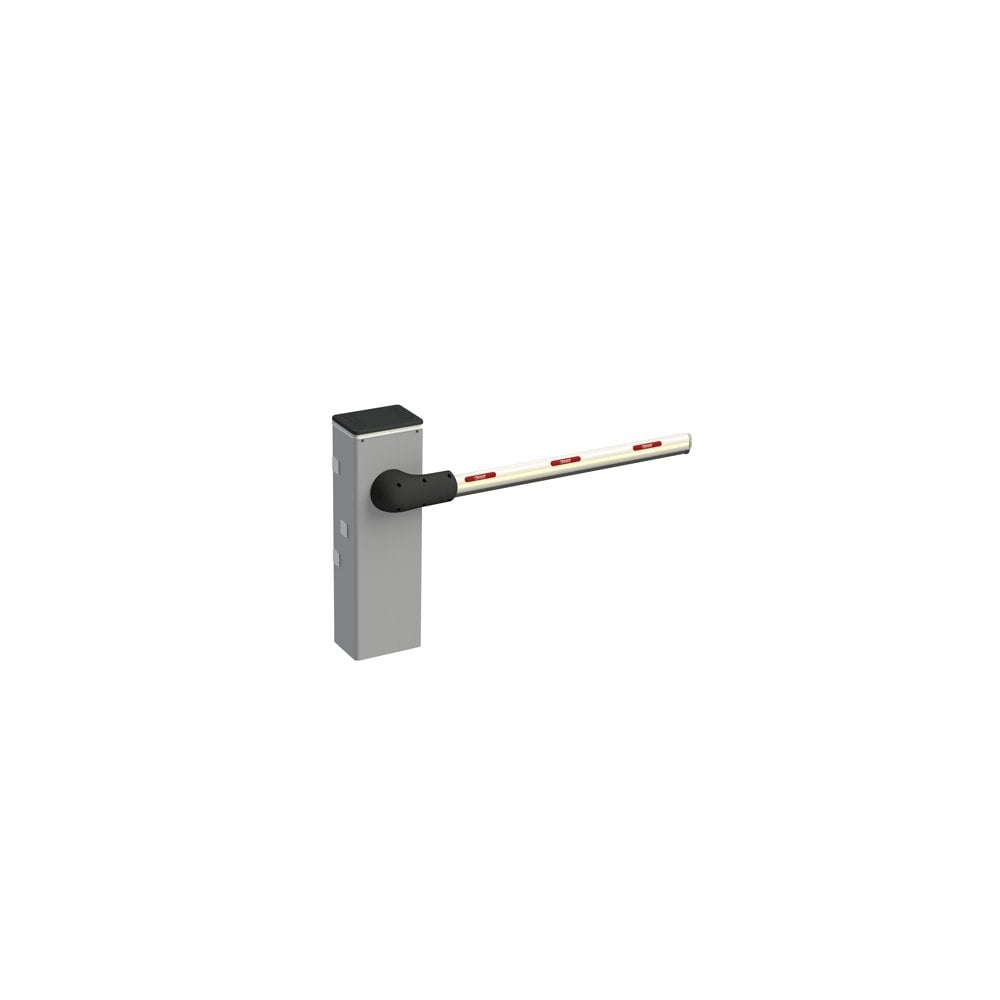

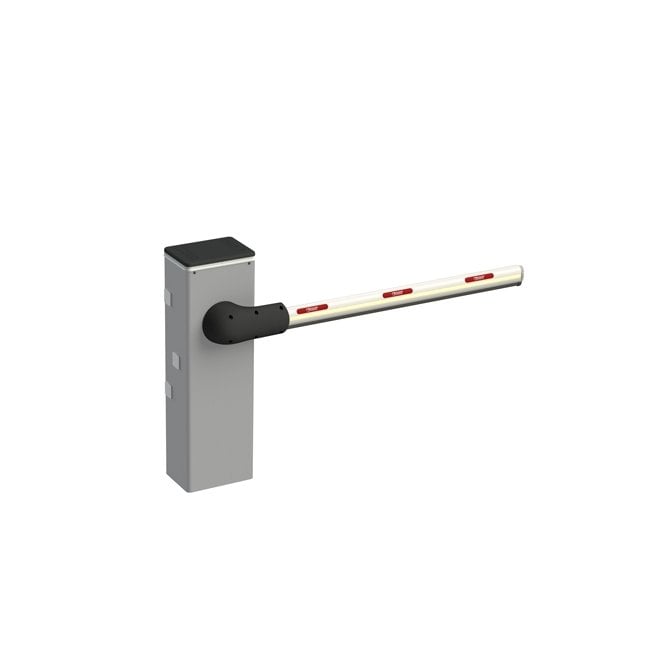

The BI/008 Bionik Brushless Barrier is engineered for super-intensive use, capable of extending up to 8 meters. Powered by a robust 36V DC motor, this barrier includes a built-in digital control panel and encoder, ensuring reliable and efficient operation for large-scale applications. Note that the product does not include a boom, but it is compatible with BA/128/4 booms and requires a KT244 fixing plate.
Key Features
- Super intensive use capability
- Extended reach up to 8 meters
- Robust 36V DC brushless motor
- High reliability and efficiency
- Compatible with BA/128/4 booms
Specifications
| Specification | BI/008 |
|---|---|
| Barrier Length | Up to 8 mt |
| Power Supply | 230V AC - 50 Hz |
| Motor Power Supply | 36V DC |
| Electrical Absorption | Max. 18A |
| Power Rating | 300W |
| Torque | 10 - 400 N m |
| Operating Temperature | -20 to +55°C |
| Protection Level | IP54 |
| Reductor Type | Irreversible |
| Opening Time at 90° | 9 - 29 sec |
| Control Unit | CTRL Digital Controller 36V DC |
| Encoder | Digital native + magnetic digital SENSORED, 4096 PPR |
| Accessories Power Supply | 24V DC |
| Colour Details | Cabinet painted RAL9006 arabesque grey, head and boom support in black arabesque silver paint, boom painted RAL9010 matt |
| Release System | European Key cylinder |
| Battery Recovery | Available (optional) |
| Synchronization | BUS Master/Slave synchronization |
| Operating Cycles (24 hours) | 2500 cycles |
| Dimensions (L x W x H) | 500 x 270 x 1237 mm |
| Weight | 104.7 kg |
Accessories
Below are the accessories suitable for the BI/008 Series:
- KT244: Fixing plate with stay bolts and screws for BI/008.
- ALED/8C: 8-metre LED strip with connection cable for barrier boom (red colour).
- BAFS/01: Fixed support for bars.
- BAFS/02: Fixing support, adjustable.
- BAFS/03: Fixing support with bolt predisposition for bars.
- BAFS/04: Fixing support adjustable, with bolt predisposition for bars.
- BAMS/01: Mobile support for bars.
- BARK/02: Barrier skirting in aluminum, with stainless steel screws mounted on bronze bushings. Single module of length 2 meters.
- BT12V45: Battery 12V 4.5 Ah (1 pc).
- DLD1/24: Single loop detector.
- DLD2/24: Dual loop detector.
- BI/BAT/KIT: Kit for emergency batteries charger for brushless digital controller CTRL 36V DC with plug-in card, with 2 recovery batteries 12V DC, 4.5 Ah. Kit for BIONIK barrier.
- BI/BCHP: Plug-in card, batteries charger, for brushless digital controller CTRL 36V DC, without recovery batteries, for BIONIK barrier.
- B73/LTM: RGB boom light and traffic light control device for CTRL.
- ALED/8C/RGB: 8-metre multicoloured RGB LED strip with connection cable for barrier boom.
- BI/BLED/8/RGB: Multicoloured RGB LED strip with connection cable for BI/008 barrier header.
- CRA/BAR/M90: Post for photocells M90/F2ESO - M90/F4ESO for spaced installation on a barrier cabinet (+23 cm).
Additional Information
For more details on the BI/008 Bionik Brushless Barriers or to place an order, please contact us. Our team is ready to assist you with any questions or support you may need.
