Product Overview

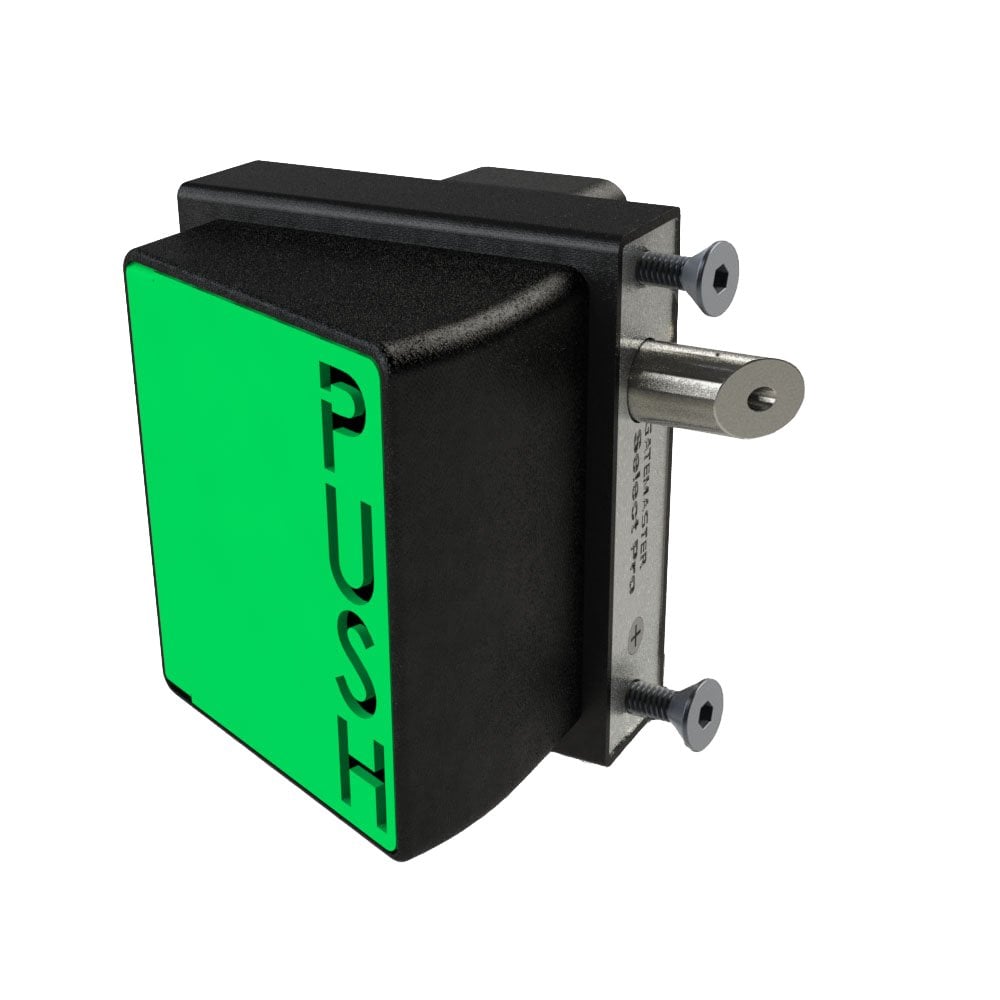

The SBQEKL Select Pro Bolt-on Quick Exit Gate Lock is designed for rapid and secure exits through gates. Specifically crafted for metal gates, this robust lock automatically latches shut when the gate is closed. Perfect for communal, school, and alley gating, ensuring security and convenience.

Key Features

• Quick exit design for rapid gate access.
• Auto-latching: The latchbolt automatically engages with the gate frame when the gate closes.
• Easy installation: Simply drill three holes in the gate frame.
• Available with an optional digital keypad entry from the outside (SBQEDGL).
• Available in left or right-hand versions.
• 16mm one-piece machined stainless steel latchbolt.
• Latchbolt moves 22mm (7/8").
• Optional security shroud (SBQES) available to prevent access to the pad from the outside (order separately).

Product Details

Specifications

• Marine grade: Salt spray tested for 1000 hours.
• Latchbolts: Adjustable, latchbolt springs 22mm (7/8").

Dimensions

Installation Instructions

1. Drill 2 x 9mm (3/8") dia. holes at 92mm (3-5/8") centers for M8 fixing bolt.
2. Drill 18mm (3/4") clearance hole for latchbolt at 22mm (7/8") centers down from the top 9mm (3/8") hole.
3. Fix lock in place using stainless steel clamp plate, bolt support plate, and 2 stainless steel countersunk fixing bolts supplied.
4. Drill clearance hole in the gate post to receive the latchbolt. Slot this hole vertically to allow for gate sag – fix the strike plate and bend back so the latchbolt slides smoothly.
5. Ensure the latchbolt moves freely without binding on the gate or frame.
6. Maintenance: Every two months, lubricate the latchbolt with light oil. Annually, dismantle the lock and spray the mechanism inside with light oil.

Maintenance

Every 3 months:

1. Remove keypads from the lock.
2. Spray the inside of the lock thoroughly with WD40 or equivalent through the tumbler holes at the back of the lock.
3. Spray all the fixing accessories and the latch with WD40 or equivalent. Push each of the buttons and rotate the knob several times to ensure the lock is working smoothly.
