Product Overview

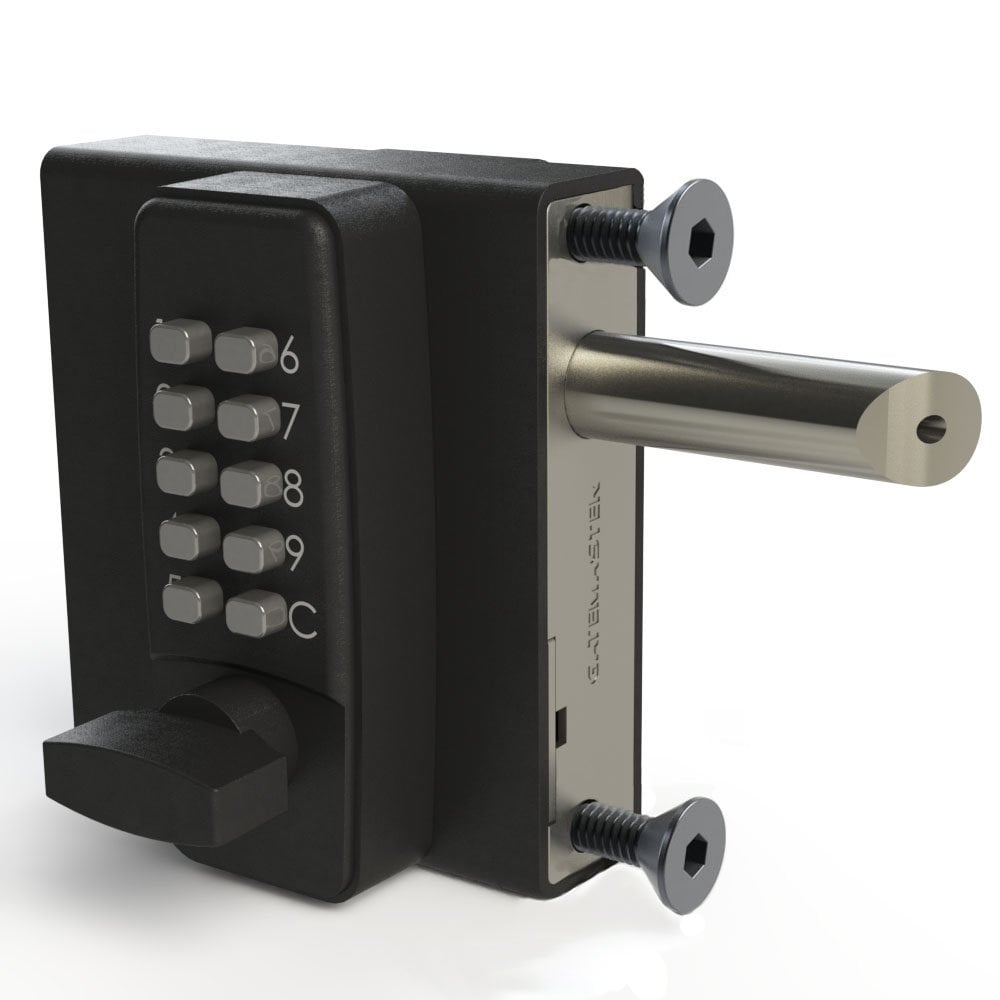

The DGLS Select Pro Digital Gatelock offers a keyless entry solution for gates, perfect for increasing security and convenience. This single-sided digital lock features access via code entry and a simple lever/handle action to exit. Designed with marine grade materials, this lock is built to last and withstand harsh conditions.

Key Features

• Single-sided digital access: Enter the code to unlock, exit with a simple lever/handle action.
• Auto-latching: The latchbolt automatically engages with the gate frame when the gate closes.
• Marine grade keypad ensures long-lasting durability (salt spray tested for 1000 hours).
• No power needed to operate.
• Latchbolt moves 22mm (7/8").
• Includes a brushed finish stainless steel bolt support plate with brass bearing to reduce friction and wear, enhancing product life.
• Strike plate included for smooth operation.
• Hold-back function allows the gate to remain unlocked for short periods.

Product Details

Specifications

• Marine grade: Salt spray tested for 1000 hours.
• Latchbolt: Adjustable, moves 22mm (7/8"), auto-latching when the gate closes.
• No power needed.
• Includes strike plate.

Dimensions

Installation Instructions

1. Drill 2 x 9mm (3/8") dia. holes at 92mm (3-5/8") centers for M8 fixing bolt.
2. Drill 18mm (3/4") clearance hole for latchbolt at 22mm (7/8") centers down from the top 9mm (3/8") hole.
3. Fix lock in place using stainless steel clamp plate, bolt support plate, and 2 stainless steel countersunk fixing bolts supplied.
4. Drill clearance hole in gate post to receive the latchbolt. Slot this hole vertically to allow for gate sag. Fix the strike plate and bend back so the latchbolt slides smoothly.
5. Ensure the latchbolt moves freely without binding on the gate or frame.
6. To adjust latchbolt length and/or change to RH/LH, insert a 3mm (1/8") long arm hex key (supplied) into the end of the bolt and release the locking screw. Rotate the bolt as required and re-tighten the locking screw. Lubricate with light oil periodically.

Maintenance

Every 3 months:

1. Remove keypads from the lock.
2. Spray the inside of the lock thoroughly with WD40 or equivalent through the tumbler holes at the back of the lock.
3. Spray all the fixing accessories and the latch with WD40 or equivalent. Push each of the buttons and rotate the knob several times to ensure the lock is working smoothly.
