Product Overview

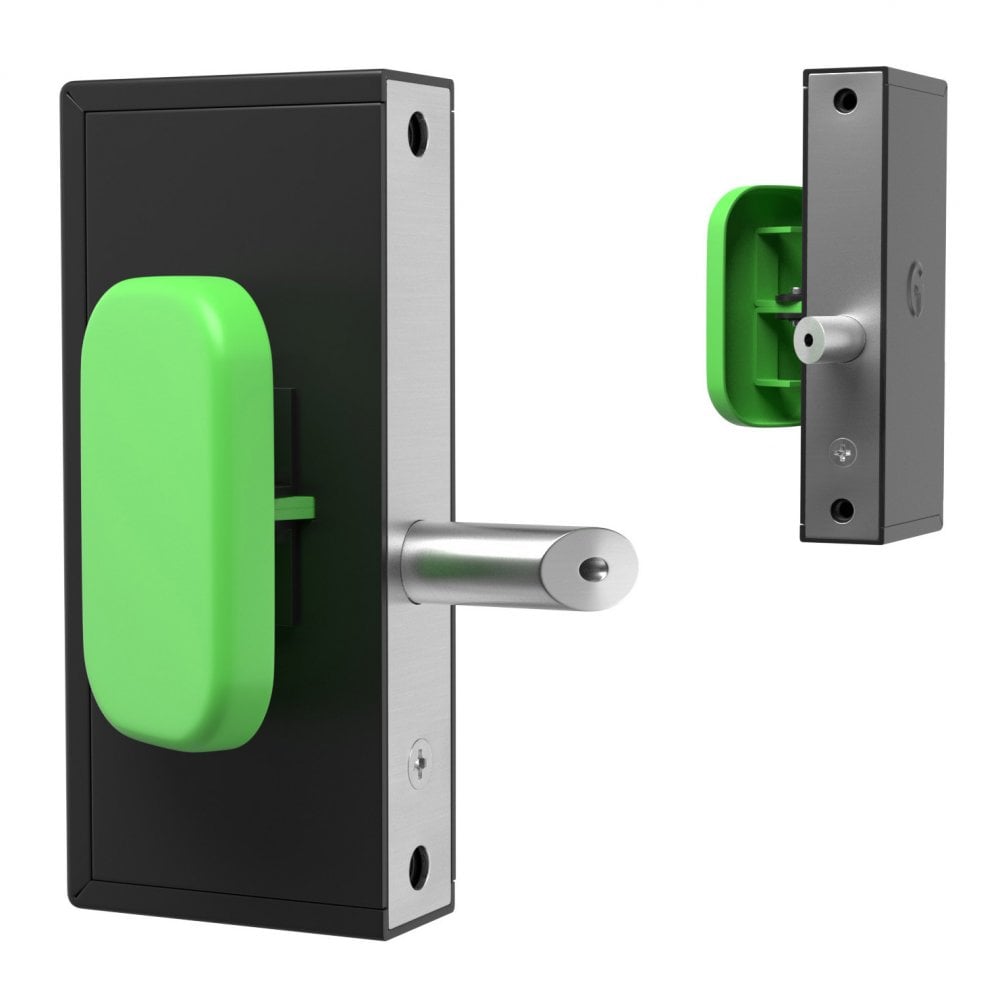

The Gatemaster BQ Superlock bolt-on quick exit no outside access lock is designed for gates that are used solely for exiting a property. Featuring a green push pad for quick exit from the inside, this lock provides a secure and unobtrusive locking mechanism. Made from stainless steel, the BQ NA Superlock ensures ultimate outdoor durability and long-lasting performance. It is perfect for securing box section metal gate frames up to 60mm.

Key Features

• Quick exit push pad for easy exit
• No access from outside, push pad on inside
• Slim 70mm (2-3/4") wide lock case
• Made from stainless steel for outdoor durability
• Adjustable and removable latchbolt for easy fitting
• Latchbolt moves 15mm (5/8") deep into the gatepost
• Security shroud available to prevent access to push pad from outside
• Non-handed, suitable for both left and right hand gates

Product Description

The Gatemaster BQ Superlock bolt-on quick exit no outside access lock is an ideal solution for gates that only require exit functionality. The green push pad on the inside facilitates rapid exit, while the lack of external access ensures security. The slim design and adjustable latchbolt make it easy to fit on most gate frames, providing a secure and durable locking solution.

Constructed from stainless steel, the BQ NA Superlock is built to withstand outdoor conditions, offering long-term durability and reliability. The latchbolt moves 15mm (5/8") into the gatepost, providing a deep and secure lock. The lock is supplied with a bolt guide plate and a gate post strike plate for straightforward installation. A security shroud is also available to prevent unauthorized access to the push pad from the outside.

This lock is non-handed, making it suitable for both left and right hand gates. It comes in four models to fit different gate frame sizes and orientations:

• BQ1030LNA: Fits 10-30mm (1/2" - 1-1/4") gate frames - left hand
• BQ4060LNA: Fits 40-60mm (1-1/2" - 2-1/4") gate frames - left hand
• BQ1030RNA: Fits 10-30mm (1/2" - 1-1/4") gate frames - right hand
• BQ4060RNA: Fits 40-60mm (1-1/2" - 2-1/4") gate frames - right hand

Installation Instructions

1. Drill 2 x 9mm (3/8") holes at 140mm (5 1/2") centres for fixing bolts provided.
2. Drill an 18mm (3/4") clearance hole for the latchbolt at 60mm (2 3/8") centres up from the bottom fixing hole.
3. Hold the lock against the back of the box section and screw on the latchbolt through the larger hole.
4. Lock the latchbolt with the hex key supplied by inserting the hex key into the end of the latchbolt.
5. Fix the lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the latchbolt moves freely.
6. Fix the strike plate by either welding or screw fixing onto the gate post.

Maintenance

Every 3 months:

1. Remove keypads from the lock.
2. Spray the inside of the lock thoroughly with WD40 or equivalent through the tumbler holes at the back of the lock.
3. Spray all the fixing accessories and the latch with WD40 or equivalent. Push each of the buttons and rotate the knob several times to ensure the lock is working smoothly.

Product Details

Dimensions

Specific dimensions are available upon request or from the product specifications sheet.
