Product Overview

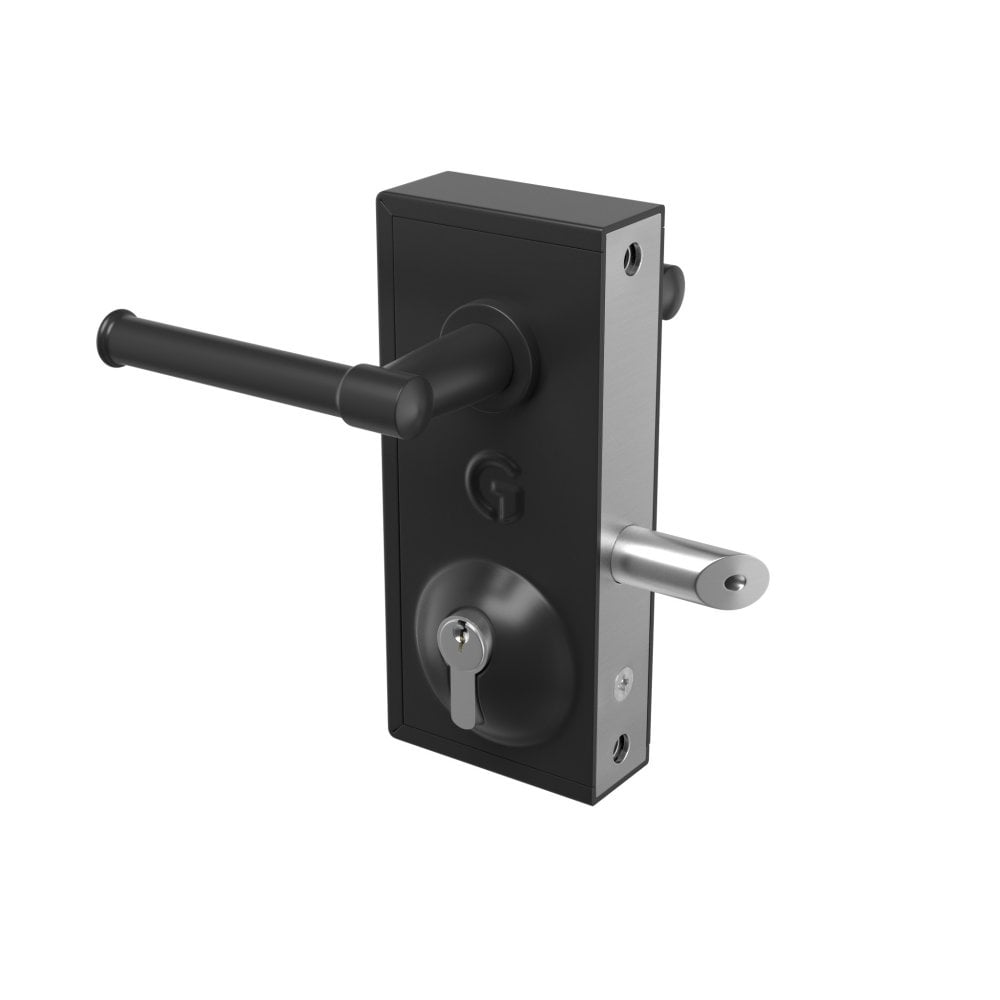

The Gatemaster BLD Superlock bolt-on latch deadlock is a new generation, easy-to-fit lock for metal gates. Combining the convenience of a latch with the security of a deadlock, this versatile lock features a slim 70mm width, making it suitable for most gate designs. Made from stainless steel, it is designed for ultimate outdoor durability.

Key Features

• Combination of latch and deadlock for convenience and security
• Slim 70mm (2 3/4") wide lock case
• Made from stainless steel for outdoor durability
• Adjustable and removable latchbolt for easy fitting
• Fits both left hand and right hand gates
• Supplied with handles - available in plain black or traditional styles
• Includes bolt support plate and gate post strike plate

Product Description

The Gatemaster BLD Superlock bolt-on latch deadlock offers a robust and reliable locking solution for gate frames up to 60mm. Its unique design provides both the convenience of a latch and the security of a deadlock, making it a versatile choice for various gate designs. The slim 70mm lock case allows for easy installation, and the latchbolt is adjustable in length for precise fitting on site. The latchbolt can be easily rotated to accommodate both left and right handed gates.

This lock is made from stainless steel, ensuring long-lasting durability in outdoor conditions. The BLD Superlock is supplied with handles in two styles: plain black and traditional, to suit different aesthetic preferences. The lock is also equipped with a bolt support plate and a gate post strike plate, making installation straightforward.

The BLD Superlock is available in four models:

• BLD1030P: Fits 10-30mm gates with plain black handle
• BLD4060P: Fits 40-60mm gates with plain black handle
• BLD1030T: Fits 10-30mm gates with traditional handle
• BLD4060T: Fits 40-60mm gates with traditional handle

The locking bolt is adjustable, with the latch retracting 15mm (5/8") and the deadbolt throwing out 15mm (5/8"). This product is perfect for both left hand and right hand gates, providing versatility in application.

Installation Instructions

1. Drill 2 x 9mm (3/8") holes at 140mm (5 1/2") centres for fixing bolts provided.
2. Drill a second 18mm (3/4") clearance hole for the latchbolt at 60mm (2 3/8") centres up from the bottom fixing hole.
3. Hold the lock against the back of the box section and screw the latchbolt through the middle hole.
4. Lock the latchbolt and deadbolt with the hex key supplied by inserting the hex key into the end of the latchbolt and the deadbolt.
5. Fix lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the latchbolt and deadbolt move freely.
6. Fix strike plate by either welding or screw fixing onto the gate post.
7. Maintenance: Every 6 months, lubricate the latchbolt with light oil. Annually, dismantle the lock and spray mechanism with light oil.

Product Details

Dimensions

Specific dimensions are available upon request or from the product specifications sheet.
