Product Overview

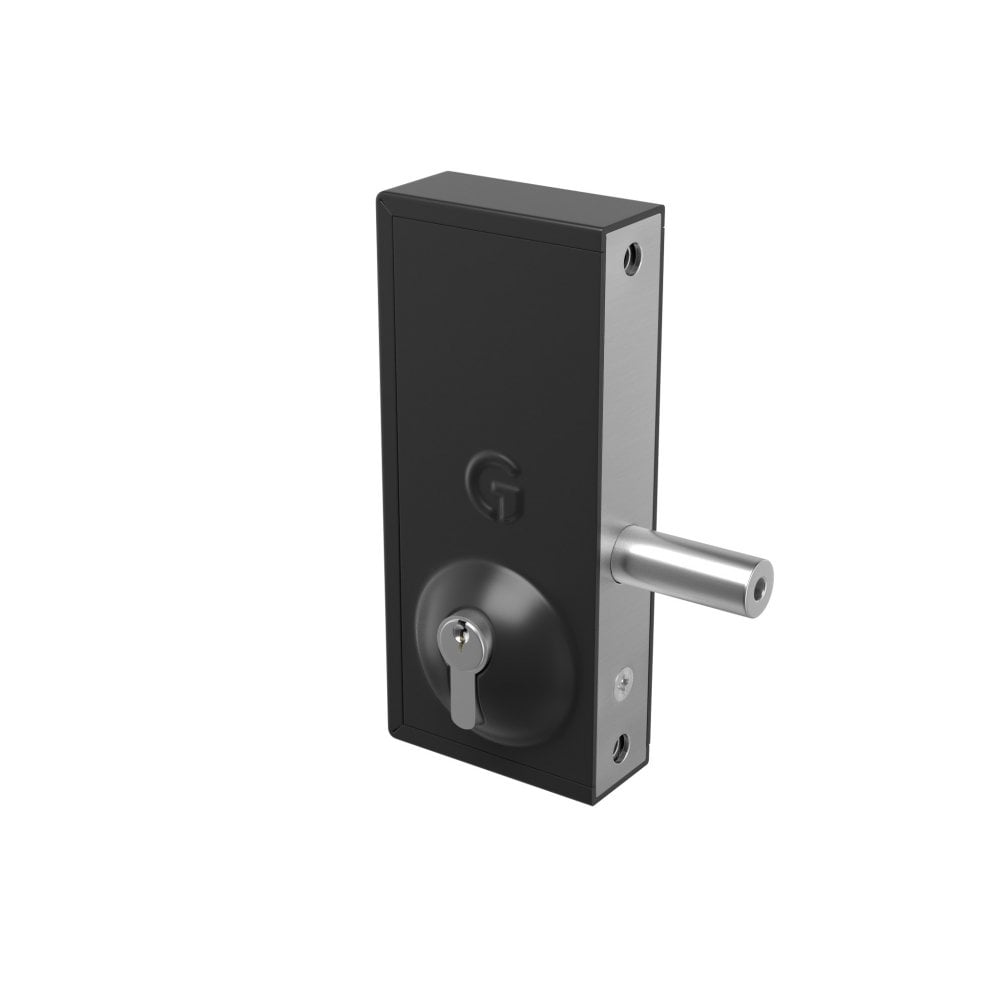

The Gatemaster BD Superlock deadlock provides maximum security with a simple, single 15mm locking action. Designed for ease of installation, this deadlock features a slim 70mm wide lock case and an adjustable, removable deadbolt to fit most gate designs. Made from stainless steel, the BD Superlock deadlock ensures durability and long-lasting performance for outdoor gates.

Key Features

• Single 15mm locking action for maximum security
• Slim 70mm wide lock case
• Made from stainless steel for outdoor durability
• Adjustable and removable deadbolt for easy fitting
• Suitable for left and right handed gates
• Supplied with bolt support plate

Product Description

The Gatemaster BD Superlock deadlock offers a robust and reliable locking solution for gate frames up to 60mm. Its simple deadlock action ensures the gate remains open until the key is turned, providing both security and convenience. The slim design and adjustable deadbolt make it easy to fit on most gate frames, ensuring a secure and durable lock.

Constructed from stainless steel, the BD Superlock deadlock is built to withstand outdoor conditions, offering long-term durability and reliability. The deadbolt moves 15mm into the gatepost, providing a deep and secure lock. The lock is supplied with a bolt support plate, ensuring a straightforward installation process.

This lock is non-handed, making it suitable for both left and right hand gates. It comes in two models to fit different gate frame sizes:

• BD1030: Fits flat bar and up to 30mm (1 1/4") box section
• BD4060: Fits 40 to 60mm (1 1/2" to 2 1/4") box section

Installation Instructions

1. Drill 2 x 9mm holes at 140mm centres for fixing bolts provided.
2. Drill a second 18mm clearance hole for the deadbolt at 60mm centres up from the bottom fixing hole.
3. Hold the lock against the back of the box section and screw the deadbolt through the bottom 18mm hole.
4. Lock the deadbolt with the hex key supplied by inserting the hex key into the end of the deadbolt.
5. Fix the lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the deadbolt moves freely.

Maintenance

Every 6 months:

1. Lubricate the deadbolt with light oil.
2. Annually, dismantle the lock and spray the mechanism with light oil.

Product Details

Dimensions

Specific dimensions are available upon request or from the product specifications sheet.
