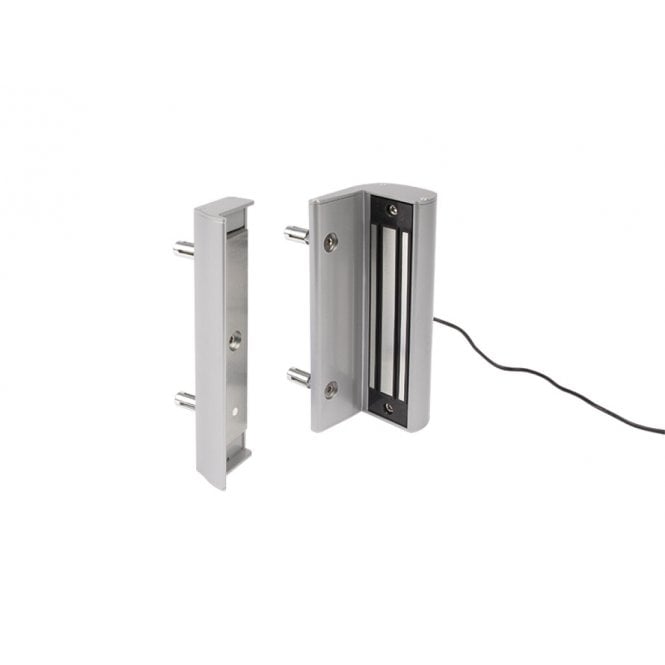

Product Overview

The MAGMAG Surface Mounted Magnetic Lock is a robust and reliable access control solution designed for quick and easy installation. Available in two versions, MAG3000 with 300 kg pulling force and MAG6000 with 600 kg pulling force, this magnetic lock provides strong security for various applications. The aluminium powder-coated housing ensures durability and long-lasting performance, even in harsh outdoor environments. The Quick-Fix system allows for fast and efficient mounting without the need for welding boxes.

Key Features

• Guaranteed holding force tested on every magnetic lock
• 500h salt spray resistant - SGS certified (ISO 9227)
• Special two-layer protective coating developed for outdoor use
• Powder-coated aluminium housing
• Anti-residual magnetism kick-off system
• Raised edge on the magnet housing prevents crowbar insertion between magnet and armature plate
• Fail open mechanism
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Voltage: 12V / 24V DC
• MAG3000: Minimal pulling force: 3000N (300 kg)
• MAG6000: Minimal pulling force: 6000N (600 kg)
• Current MAG3000: 500 mA / 12V or 250 mA / 24V
• Current MAG6000: 460 mA / 12V or 230 mA / 24V

Product Description

The MAGMAG Surface Mounted Magnetic Lock provides robust security and reliable performance for access control applications. Available in two versions with 300 kg or 600 kg pulling force, this lock is designed for quick installation using the Quick-Fix system. The aluminium powder-coated housing ensures durability and resistance to harsh outdoor conditions, while the special two-layer protective coating provides additional protection against the elements. The fail-open mechanism ensures safety in the event of power failure.

Installation and Usage

Installing the MAGMAG magnetic lock is efficient and straightforward with the Quick-Fix system, requiring only five holes for mounting. The lock is compatible with both 12V and 24V DC power sources, with the MAG3000 version drawing 500 mA at 12V or 250 mA at 24V, and the MAG6000 version drawing 460 mA at 12V or 230 mA at 24V. The raised edge on the magnet housing prevents tampering with a crowbar, enhancing security. The lock's fail-open mechanism ensures that it remains open in the event of a power failure, providing an additional layer of safety.

Durability and Protection

The MAGMAG magnetic lock is built to withstand harsh weather conditions, with a special two-layer protective coating and a powder-coated aluminium housing that resists corrosion. Its SGS-certified salt spray resistance ensures long-lasting durability in outdoor use. The anti-residual magnetism kick-off system prevents the lock from retaining magnetic force after disengagement, ensuring reliable operation. These features make the MAGMAG lock an ideal choice for secure and durable access control in various environments.
