NICE MC800 Control Panel for 230V Motors with BlueBUS Technology

Product Overview

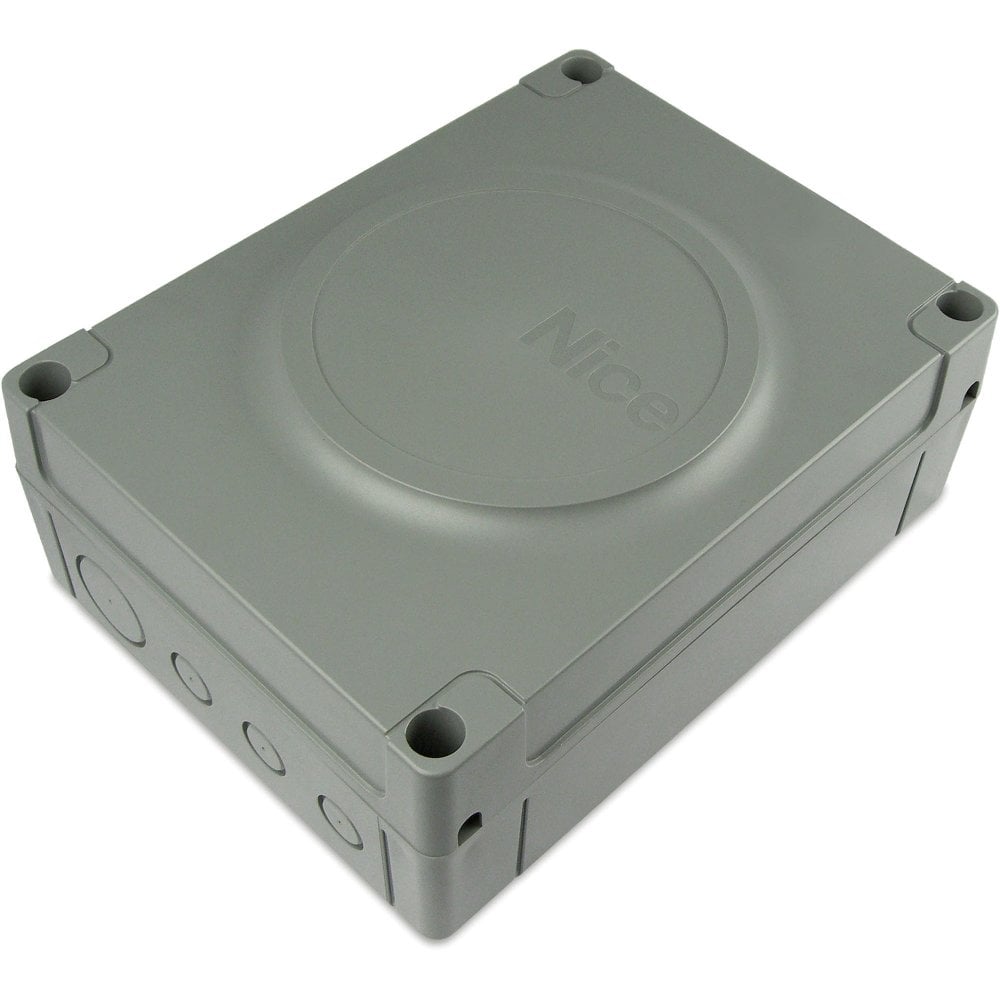

The Nice MC800 Control Unit is designed for managing 1 or 2 230V motors, integrating seamlessly with Nice BlueBUS technology and the Nice Opera system. This advanced control panel offers easy installation and connection of accessories, along with enhanced automation management, programming, and diagnostics capabilities, even remotely.

Key Features

• BlueBUS Compatibility: Enables simple connection of the control unit and accessories using just two wires.
• Opera System Compatibility: Allows for comprehensive automation management, programming, and diagnostics, including remote operations.
• Multi-function O-View Display: (Not included) Mountable in the box for system personalization, modifying opening and closing positions, staggered closing of leaves, and decelerations, and adjusting parameters like force, speed, and obstacle sensitivity for each motor.
• Universal Power Supply: 120/230 VAC 50/60Hz
• Microprocessor Logic: Combines the benefits of the Nice Opera system with advanced Nice system functions such as gradual start and deceleration, automatic limit switch position memorization, and pedestrian pass door function.
• Safe and Reliable: Features obstacle detection with double technology throughout the travel and the possibility of connecting latest generation resistive sensitive edges.
• Intelligent Design: Includes features like power supply confirmation and efficient operation indication, automatic fault diagnostics, and signaling via flashing light and confirmation LEDs.
• Radio Receiver: Designed to accommodate SM plug-in receivers.

Compatible Motors

• TO4005
• TO4006
• TO4015
• TO4605
• TO5015
• TO5016
• TO5605
• HY7100
• HY7005
• WG4000
• WG5000
• MFAB3000
• MFAB3000L
• LFAB4000

Advanced Features

• Gradual Start and Deceleration: Smooth operation and reduced wear on the motor.
• Automatic Limit Switch Position Memorization: Simplifies setup and ensures accurate operation.
• Pedestrian Pass Door Function: Enhances accessibility and convenience.
• Obstacle Detection: Double technology throughout the travel for improved safety.
• Fault Diagnostics: Automatic and easy-to-read signaling via flashing light and confirmation LEDs.
• Flexible Configuration: Customizable parameters for force, speed, and obstacle sensitivity for each motor.

Installation and Operation

The Nice MC800 control panel ensures a straightforward installation process, thanks to its BlueBUS technology which simplifies wiring to just two wires for all connections. The control unit's compatibility with the Nice Opera system enables advanced remote management, making it a smart choice for both residential and commercial applications.

Technical Specifications

• Power Supply: 120/230 VAC 50/60Hz
• Output: Supports 1 or 2 230V motors
• Radio Receiver: Compatible with SM plug-in receivers
• Protection: Built-in obstacle detection with double technology
