Laser Detection
Code: LZR*
  • From £632.17 Ex Vat
Item in Stock   |   Usually dispatched within 24 hours
Loading...
Ask A Question
Tell A Friend
Price Match

Product Overview

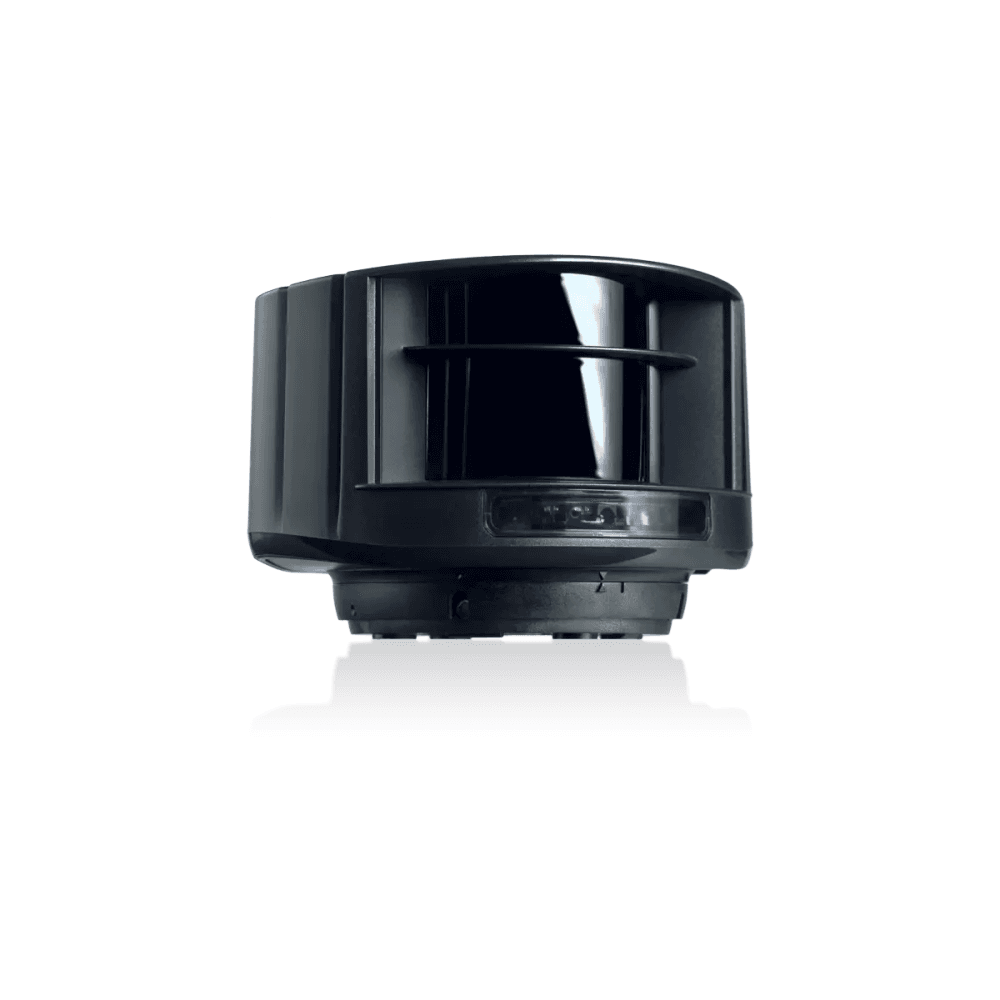

BEA's LZR series offers advanced laser-based sensing solutions for various automation and safety applications. The series includes three primary models that utilize time-of-flight technology to create reliable detection fields:

  • LZR-H100: A specialized laser scanner designed for gate and barrier applications, providing an effective alternative to traditional induction loops.
  • LZR-I100/I110: Safety sensors specifically designed for industrial doors, offering optimal protection in the door threshold and its proximity with dynamic detection fields.

All models use LASER scanner technology based on time-of-flight measurement, creating precise detection areas that can be easily configured for various installation environments. These sensors represent significant advancements over conventional detection systems like induction loops, contact edges, and photocells.

Key Features

LZR-H100

  • Effective Alternative To Loop Detectors: Ideal for applications where cutting ground for loops is prohibited, impossible, or expensive.
  • Trajectory Detection: Ability to detect vehicle trajectory during approach and departure.
  • Reliable And Constant Detection: Time-of-Flight, presence-based, opto-electronic sensor ensures accurate and immediate detection.
  • Pedestrian-Traffic Rejection: Ability to detect or ignore pedestrian traffic.
  • Large Detection Field: Maximum detection field of 32 ft × 32 ft (9.75 m × 9.75 m).
  • Dual-Relay Activation: Two relays allow for activation via motion or presence.

LZR-I100/I110

  • Virtual Opening Buttons: Possibility to create 2 virtual push buttons to open the door.
  • Separate Detection Areas: Safety at the opening and the closing of the door thanks to 2 separate detection areas.
  • Alternative Solution: Replaces current safety solutions such as contact edges, light beams, and lightgrids.
  • Industrial Optimization: IP65 rated, 10m cable included, filters door vibrations and environmental interferences.
  • Easy Installation: Easy positioning of the detection field thanks to 3 visible LASER beams.
  • Automatic Configuration: Automatic teach-in of door dimensions and various settings via BEA's remote control.

Technical Specifications

SpecificationLZR-H100LZR-I100LZR-I110
Primary ApplicationGate and barrier applicationsSafety for industrial doors
TechnologyLASER scanner, Time-of-FlightLASER scanner, Time-of-Flight
Detection ModeMotion and presencePresence
Max. Detection Range32 ft × 32 ft (9.75 m × 9.75 m)9.9 m × 9.9 m5 m × 5 m
IR LASERWavelength 905 nm; max. output pulse power 0.10 mW (CLASS 1)Wavelength 905 nm; output power <0.10 mW (CLASS 1)
Visible LASERWavelength 635 nm; max. output CW power 3 mW (CLASS 2R)Wavelength 635 nm; output power
Supply Voltage10-35 VDC @ sensor terminal10-35V DC @ sensor terminal
Power Consumption< 5 W< 5 W
Response TimeMotion: typ. 200 ms (adjustable)
Presence: typ. 20 ms (max. 80 ms)		Typ. 20 ms; max. 80 ms
Outputs2 electronic relays (galvanic isolated - polarity free)2 electronic relays (galvanic isolation - polarity free)
Dimensions3⅝" (W) × 2¾" (H) × 5" (D)125 mm (L) × 93 mm (D) × 70 mm (H) (mounting bracket + 14 mm)
Material/ColorPC/ASA - BlackPC/ASA - Black/White
Protection DegreeNEMA 4/IP65IP65
Operating Temperature-22°F to 140°F (-30°C to 60°C) if powered-30°C to +60°C if powered
Cable Length33'10 m
Special FeaturesPedestrian detection/rejection capabilityVirtual push button capability, automatic teach-in of door dimensions
